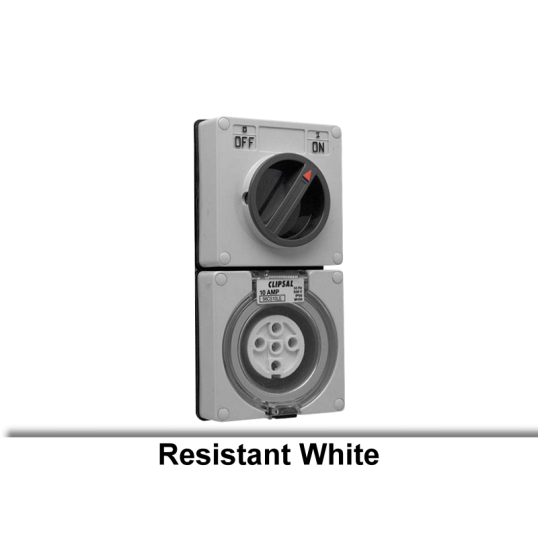

Clipsal 56 Series Switch Socket Outlet Less Enclosure 3Ph 10A 500V 5 Pin Round White IP66

$ClipsalNew\C0001934-RW.png$

Description

Switch Socket Outlet Less Enclosure, 3 Phase, 10 Amp, 500 Volt AC, 50 Hz, 5 Pole, 5 Pin Round, Screw, 2 x M20, 1 x M25, Terminal Capacity: 1.5 to 6 mm, Surface Mount, IP66, PC And PET Cover, Phosphor Bronze Pin, Chemical Resistant White, 198 mm Height, 101 mm Width, 45 mm Depth, -25 to 75 deg C

Key Specifications

Barcode (EAN-13)	9311554356217
SKU	CLI56C510LERW
Brand	Clipsal
Range Name	56 Series
Product Type	Switch Sockets

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	56C510LE-RW
Colour	Chemical Resistant White
Conduit Entry	2 x M20/1 x M25
Connection Type	Screw
Current	10 Amp
Depth	45 mm
Frequency	50 Hz
Height	198 mm
IP Rating	IP66
Mounting Method	Surface
Number Of Poles	5 Pole
Phase	3 Phase
Pin Configuration	5 Pin Round
Temperature	-25 to 75 deg C
Terminal Capacity	1.5-6 mm
Voltage	500 Volt
Width	101 mm
