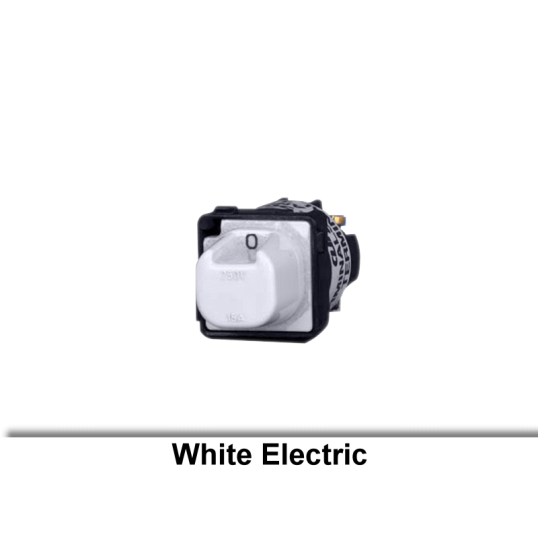

Clipsal Switch Mechanism Rotary 3 On 1 Off 15A 250V 1 Pole 4 Way White

Description

Switch Mechanism Rotary, 250 Volt Switch, 15 Amp, For Use With 30 Series Plate Apertures, Vertical Orientation, 1 Pole, Rotary Knob Control, 3 On/1 Off/4 Positions, Flush Mounting, Plastic, White

Key Specifications

Barcode (EAN-13)	9311554055394
SKU	CLI30RSM3WE
Brand	Clipsal
Range Name	30 Series
Product Type	Switch Mechanisms

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Rotary 4 terminal - 3 on, 1 off Also suitable for 12 VDC Audio and control applications Switch positions indicated in window M50 motor rating Reference contains substances of very high concern above the threshold
Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	30RSM3-WE
Colour	White
Current	15 Amp
Control Type	Rotary Knob
For Use With	30 Series Plate Apertures
Material	Plastic
Mounting Method	Flush
Number Of Poles	1 Pole
Orientation	Vertical
Switch Function	3 On/1 Off/4 Positions
