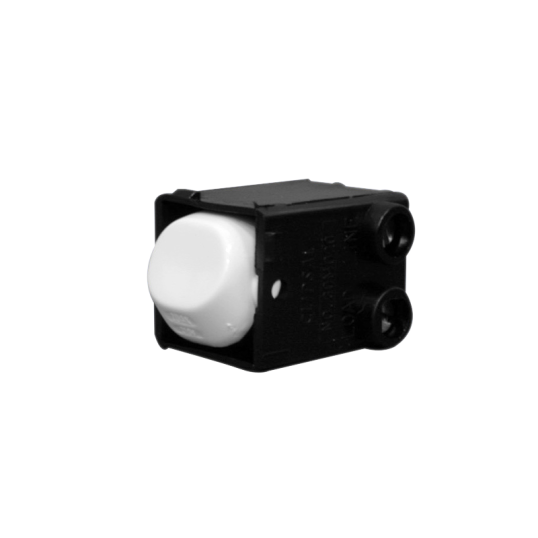

Clipsal Switch Mechanism 20A AX 250V 2 Way White

$ClipsalNew\A0003279.png$

Description

Switch Mechanism, 250 Volt Switch, 20 Amp, For Use With 30 Series Plate Apertures, 2 Pole, 2 Way, Rocker Switch Control, Screw Terminal, DPDT, Flush Mounting, PVC, White, Glossy

Key Specifications

Barcode (EAN-13)	9311554053604
SKU	CLI30MD20WE
Brand	Clipsal
Range Name	30 Series
Product Type	Switch Mechanisms

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	4 Terminals of 1.5 mm diameter accommodate 3 x 2.5 sq-mm cable M100 motor rating Body fits 34 mm diameter hole
Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	30MD20-WE
Colour	White
Control Type	Rocker Switch
Current	20 Amp
Finish	Gloss
For Use With	30 Series Plate Apertures
Mounting Method	Flush
Material	PVC
Number Of Poles	2 Pole
Number Of Ways	2
Switch Function	DPDT
Terminal Type	Screw
Voltage	250 Volt Switch
