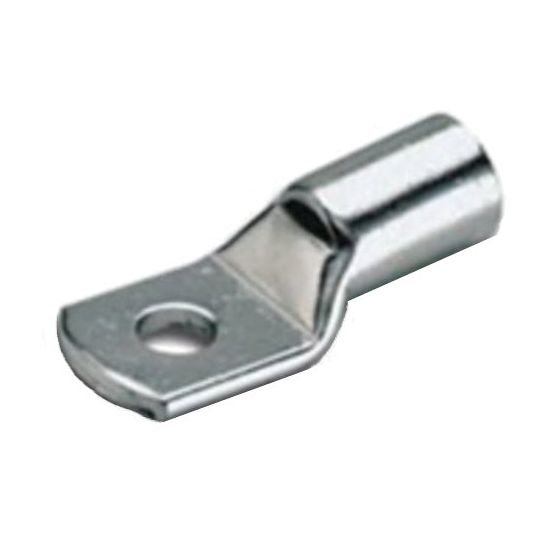

CJS Crimp Lug Standard Heavy Duty with Inspection Hole Copper 1.5mm M6 Stud 20mm OAL

$CJS\CJS_Copper_Crimp_Lug_Standard.jpg$

Description

Heavy Duty Compression Cable Lug, 1.5 mm, M6 Stud, Standard Barrel Type, 7 mm Barrel Length, 20 mm Overall Length, 1 Hole, 1.8 mm Inside Diameter, 3.7 mm Outside Diameter, 10 mm Lug Width, 11 mm Lug Length, Annealed Electrolytic Copper Body, Copper, Tin Plated, -55 to 155 deg C, With Inspection Hole

Key Specifications

SKU	CJS-LUG-CU-001.5-M6
Brand	CJS

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Electrolytic copper 99.95% purity Annealed material ensures optimal crimping properties Internal chamfer for easy cable insertion For flexible and stranded copper conductors Voltage rating - according to AS/NZS4325-Part 1 up to 30 kV (Um 36 kV) Double thickness provides a strong ring tongue 100% copper tin plated for corrosion resistance Gauge and size clearly marked for identification
Standard Pack Size	1
UNSPSC Class	39121400
UOM	EA
Vendor Product	CJS-LUG-CU-001.5-M6
Barrel Length	7 mm
Barrel Type	Standard
Body Material	Annealed Electrolytic Copper
Conductive Material	Copper
Conductor Size	1.5 mm
Finish	Tin Plated
Inside Diameter	1.8 mm
Lug Length	11 mm
Lug Width	10 mm
Number of Holes	1 Hole
Outside Diameter	3.7 mm
Overall Length	20 mm
Please Note	with Inspection Hole
Stud Size	M6
Temperature	-55 to 155 deg C
