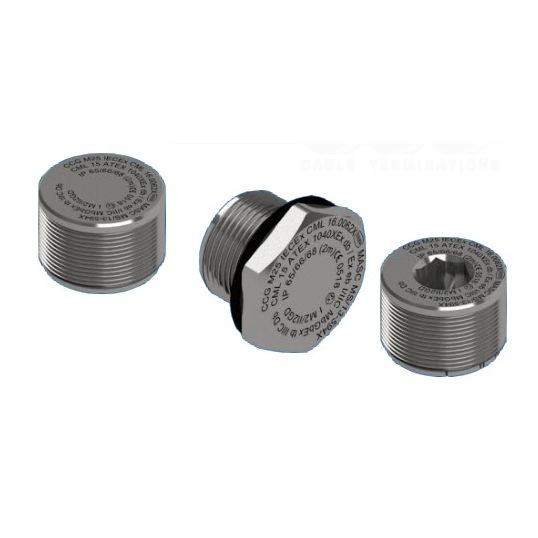

CCG Cable Gland Metallic EXDE Stopper Plug M20

$CCG\CCG_Stopper-Plugs.jpg$

Description

Cable Gland Metallic EXDE Stopper Plug, M20 Cable Gland Size, 16 mm Thread Length, For Use With All General Industrial and Hazardous Area Applications, Ex db, Ex eb, Ex ta, Ex nR, 21 Nm Torque Rating, IP65/66/68, 316/316L Stainless Steel/Aluminium/Brass Body, HDPE/Nylon 66/PTFE Gasket, Nickel Plated, -60 to 95 deg C/-60 to 100 deg C/60 to 160 deg C

Key Specifications

SKU	CCGPHM020E
Brand	CCG

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Precision manufactured from high quality brass (marine grade electroless nickel plated), available in aluminium, stainless steel 316/316L on request. (Note: Aluminium not suitable for Group I applications.) Used to blank off threaded entry holes Dome or Hex Head Plugs may be used to blank off an unthreaded entry hole if secured in place with a locknut
Standard Pack Size	1
UNSPSC Class	39121400
UOM	EA
Vendor Product	PHM020E
Body Material	316/316L Stainless Steel/Aluminium/Brass
Cable Gland Size	M20
Finish	Nickel Plated
IP Rating	IP65/66/68
Gasket Material	HDPE/Nylon 66/PTFE
Hazardous Area Rating	Ex db Ex eb Ex ta Ex nR
For Use With	All General Industrial and Hazardous Area Applications
Temperature	-60 to 95 deg C/-60 to 100 deg C/60 to 160 deg C
Thread Length	16 mm
Torque Rating	21 Nm
