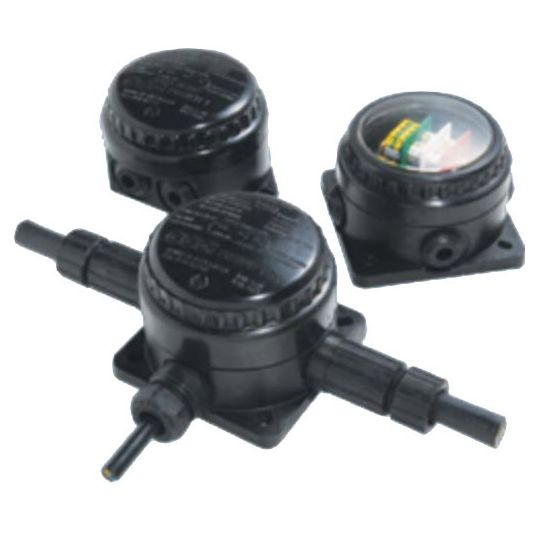

CCG Terminal Junction Box 32mm 4 Way TX Type Glass Reinforced Polyester IP68 203mm OD

Description

Terminal Junction Box, 32mm Entry Size, 4 Entries, 203 mm Outside Diameter, Distance Between Centres: 166 mm, 167mm Mounting Centres, 150mm Rail Mounting Centres, 142 mm Overall Height, IP68, -60 to 55 deg C Ambient, -60 to 110 deg C Service, Glass Reinforced Polyester

Key Specifications

SKU	CCG100303
Brand	CCG
Range Name	Posi-Box
Product Type	Terminal Boxes & Enclosures

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	For hazardous installations High temperature resistance and anti-static properties DIN rail mounting studs are provided for use with terminal blocks Raised domed lid facilitates connections to be made outside of the box Only approved CCG cable glands and non-sparkling terminals must be used Dust and water tight to IP66/68 when fitted with CCG sealed cable glands Boxes can be buried for extended periods
Standard Pack Size	2
UNSPSC Class	39121400
UOM	EA
Vendor Product	100303
Distance Between Centres	166 mm
Entry Size	32 mm
IP Rating	IP68
Overall Height	142 mm
Number of Entries	4 Way
Mounting Centres	167 mm
Outside Diameter	203 mm
Rail Mounting Centres	150 mm
Temperature	-60 to 55 deg C Ambient/-60 to 110 deg C Service
