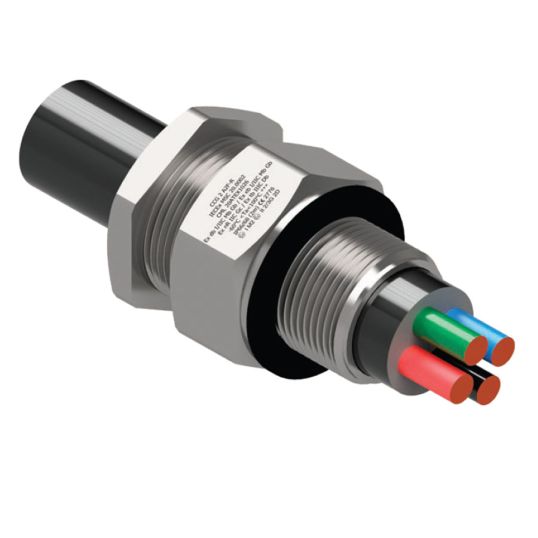

CCG Hazardous Area Cable Gland U/A 16-22mm M32x1.5 IP65/66/68 316/316L Stainless Steel/Aluminium/Brass

$CCG\CCG_A2F-R.jpg$

Description

Hazardous Area Cable Gland, Unarmoured, Compression, M32, 15 mm Thread Length, 1.5 mm Pitch, 16 mm Min. Sheath OD, 22 mm Max. Sheath OD, 42 mm Width Across Flats, 47 mm Width Across Corners, For Single or Multi-Core Unarmoured PVC Cable, 54 mm Protrusion Length, 55 Nm Torque Rating

Key Specifications

SKU	CCG059033
Brand	CCG
Product Type	Cable Glands Unarmoured Hazardous Area

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Passes the IECEx/UKEX/ATEX 100% pull test, so no additional cable clamping is required For indoor, outdoor, group I, II, III, zone 1, 2, 20, 21 and 22 hazardous areas Fitted with a specially formulated elastomeric displacement seal, giving superior cable retention, explosion protection and IP rating Precision manufactured from high quality brass (marine grade electroless nickel plated), available in aluminium or stainless steel 316/316L on request. (Note: Aluminium is not suitable for Group I applications.) Supplied with a thread sealing gasket (parallel threads only)
Standard Pack Size	10
UNSPSC Class	39121400
UOM	EA
Vendor Product	059033
For Use With	Single or Multi-Core Unarmoured PVC Cable
Finish	Nickel Plated
Body Material	316-316L Stainless Steel / Aluminium / Brass
Gasket Material	HDPE / Nylon 66 / PTFE
Hazardous Area Rating	Group I/II/III/Zone 1/2/20/21/22 Ex db I/IIC Ex eb I/IIC Ex ta IIIC Ex nR IIC
IP Rating	IP65/66/68
Protrusion Length	54 mm
Min. Sheath OD	16 mm
Max. Sheath OD	22 mm
Overall Length	45 mm
Please Note	Size 3s-32s
Seal Material	Standard Thermoset Elastomer
Thread Pitch	1.5 mm
Temperature	-60 to 95/100 deg C (Standard Seal) / -60 to 160 deg C (Extreme Temp Seal)
Thread Length	15 mm
Thread Size	M32
Width Across Corners	47 mm
Torque Rating	55 Nm
Width Across Flats	42 mm
