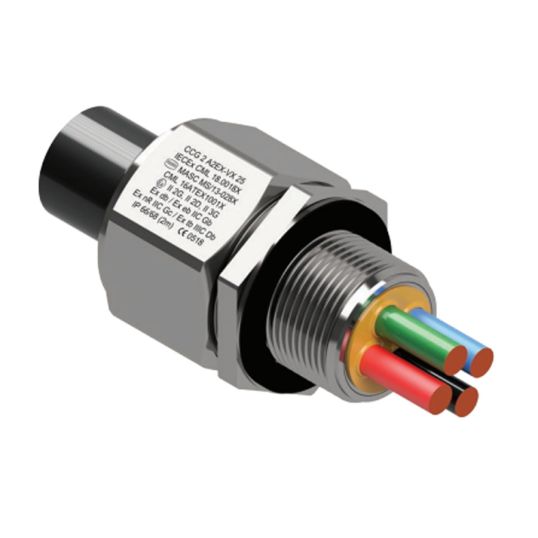

CCG Cable Gland Barrier Compression M20 11-15mm 316/316L Stainless Steel/Aluminium/Nickel Plated Brass IP68

$CCG\CCG_056401-VX.jpg$

Description

Cable Gland Barrier Compression, M20, 15 mm Thread Length, 1.5 mm, 11 mm Min. Sheath OD, 15 mm Max. Sheath OD, 11-15 mm Cable Diameter, 27 mm Width Across Flats, 30 mm Width Across Corners, For Use With Single or Multi-Core Unfilled Unarmoured Cable, Ex db IIC, Ex eb IIC, Ex ta IIIC, Ex nR IIC, 25 Conductors, 32.5 Nm Torque Rating, IP68, 316/316L Stainless Steel/Aluminium/Brass Body, Thermoset Elastomer Seal, HDPE/Nylon 66/PTFE Gasket, Nickel Plated, 30 mm Overall Length, -60 to 100 deg C

Key Specifications

SKU	CCG056401-VX
Brand	CCG
Range Name	Vortex

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	For indoor, outdoor, group II, III, zone 1, 2, 20, 21 and 22 hazardous areas For unfilled hygroscopic multicore cables refer to IEC 60079-14; 9.3.2 and 10.6.2a, IEC 61892-7, 10.6 and 10.7 Instantly mixed and injected resin forms a 100% barrier seal around the individual cores of the cable Prevents explosive gases and/or liquids from transmitting down the cable Precision manufactured from high quality brass (marine grade electroless nickel plated), available in aluminium or stainless steel 316/316L on request Supplied with a thread sealing gasket (parallel threads only)
Standard Pack Size	20
UNSPSC Class	39121400
UOM	EA
Vendor Product	056401-VX
Body Material	316/316L Stainless Steel/Aluminium/Brass
Cable Diameter	11-15 mm
For Use With	Single or Multi-Core Unfilled Unarmoured Cable
Gasket Material	HDPE/Nylon 66/PTFE
Finish	Nickel Plated
Hazardous Area Rating	Ex db IIC Ex eb IIC Ex ta IIIC Ex nR IIC
IP Rating	IP68
Max. Sheath OD	15 mm
Min. Sheath OD	11 mm
Number of Conductors	25
Overall Length	30 mm
Seal Material	Thermoset Elastomer
Temperature	-60 to 100 deg C
Thread Length	15 mm
Thread Pitch	1.5 mm
Thread Size	M20
Torque Rating	32.5 Nm
Width Across Flats	27 mm
Width Across Corners	30 mm
