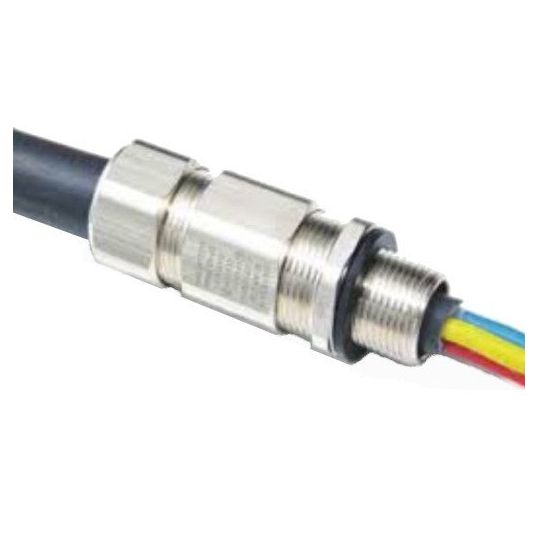

CCG Hazardous Area Cable Gland Armoured Barrier 11.5-16mm M20 IP66

$CCG\CCG_Type_E1EX_QS.jpg$

Description

Hazardous Area Cable Gland, Armoured, Barrier, M20, 15 mm Thread Length, 1.5 mm Pitch, 11.5 mm Min. Sheath OD, 16 mm Max. Sheath OD, 12 mm Max. Bedding OD, 0.2 mm Min. Armour Wire, 1.25 mm Max. Armour Wire, Exdb IIC, Exeb IIC, Ex tb IIIC, Ex nR IIC, 24 mm Width Across Flats, 27 mm Width Across Corners, For Unfilled SWA and Aluminium Armoured Cable, 6 Core, 21 N/m, IP66, Thermoplastic Elastomer Seal, Brass Body, Nickel Plated Finish, -20 to 95 deg C, 75 mm Overall Length

Key Specifications

SKU	CCG0560-0
Brand	CCG
Product Type	Cable Glands Hazardous Area

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	For indoors, outdoors, group II, III, zone 1, 2, 21 and 22 hazardous areas For unfilled hygroscopic multicore cables refer to IEC 60079-14; 9.3.2 and 10.6.2a, IEC 61892-7, 10.6 and 10.7 Freely rotating captive cone and inspectable cone ring provides an armour clamp and earth bond on steel wire and aluminium armour With a patented Variable Deluge Seal as standard Precision manufactured from high quality brass Instantly mixed and injected resin forms a 100% barrier seal around the individual cores of the cable Prevents explosive gases and/or liquids transmitting down the cable
Standard Pack Size	1
UNSPSC Class	39121400
UOM	EA
Vendor Product	0560-0
Body Material	Brass
Finish	Nickel Plated
For Use With	Unfilled SWA & Aluminium Armoured Cable
Hazardous Area Rating	Exdb IIC Exeb IIC Ex tb IIIC Ex nR IIC
IP Rating	IP66
Max. Bedding OD	12 mm
Max. Sheath OD	16 mm
Overall Length	75 mm
Number of Cores	6 Core
Min. Sheath OD	11.5 mm
Min. Armour Wire	0.2 mm
Max. Armour Wire	1.25 mm
Thread Pitch	1.5 mm
Seal Material	Thermoplastic Elastomer
Temperature	-20 to 95 deg C
Thread Size	M20
Torque Rating	21 Nm
Width Across Corners	27 mm
Width Across Flats	24 mm
Thread Length	15 mm
