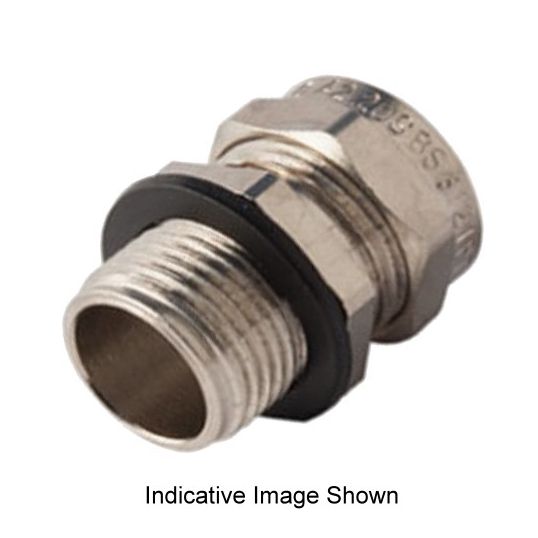

CCG Metal Cable Gland Unarmoured General Purpose M90 73-82mm Nickel Plated Brass with Locknut IP66/68

$CCG\CCG_Type_A2.jpg$

Description

Compression Gland for Single and Multi-Core Unarmoured Cable.

Looking for something specific? Search with keywords to help filter your required specifications.

Features	For indoor and outdoor use Seals on the cable sheath, to IP68 if fitted with a gasket Specially formulated elastomeric seals Wide sealing range Precision manufactured from high quality brass and nickel plated By removing the outer nut seal and bush the inners of sizes 1 to 3 can be used as metric reducers
Standard Pack Size	2
UNSPSC Class	39121400
UOM	EA
Vendor Product	053509
For Use With	Unarmoured Cables
Finish	Nickel Plated
IP Rating	IP66/68
Body Material	Brass
Max. Sheath OD	82 mm
Min. Sheath OD	73 mm
Overall Length	80 mm
Temperature	-65 to 120 deg C
Thread Length	20 mm
Seal Material	Thermoset Elastomer
Thread Pitch	2 mm
Width Across Corners	125 mm
Torque Rating	120 Nm
Thread Size	M90
Width Across Flats	111 mm
