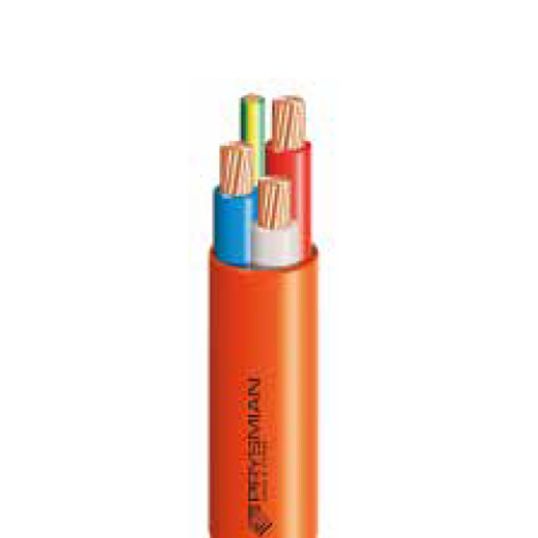

25mm Orange Circular Cable Unarmoured XLPE/PVC 1mtr
Loading...
Description
Circular Power Cable, Unarmoured, 3 Core & Earth, 25mm, Plain Annealed Copper, 0.6/1 kV, 19/1.35mm Strands, 6.8mm Nominal Diameter, 22.6mm Overall Diameter, 90mm Bend Radius, 0.9mm Insulation Thickness, Conductor Resistance: DC - 0.727 Ohm/km, V-90 XLPE Insulation, 5V-90 PVC Sheath, Red White Blue Green/Yellow Cores, Orange Sheath, 90 deg C, AS/NZS 5000.1
Key Specifications
| Barcode (EAN-13) |
9310835914412
|
|---|---|
| SKU |
CBL25/3CEOCXLPE/PVC
|
| Brand |
Generic
|
| Product Type |
Circular Cable Unarmoured
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | 20199655 |
| Bend Radius | 90 mm |
| Conductor Resistance | DC: 0.727 Ohm/km |
| Conductor Size | 25 mm |
| Conductor Type | Annealed Copper |
| Core Colours | Red/Blue/White/Green/Yellow |
| Insulation Thickness | 0.9 mm |
| Insulation Material | XLPE |
| Nominal Diameter | 6.8 mm |
| Number of Cores | 3 Core + Earth |
| Overall Diameter | 22.6 mm |
| Sheath Colour | Orange |
| Sheath Material | PVC |
| Stranding | 19/1.35 mm |
| Standards | AS/NZS 5000.1 |
| Temperature | 90 deg C |
| Voltage | 0.6-1 kV |
