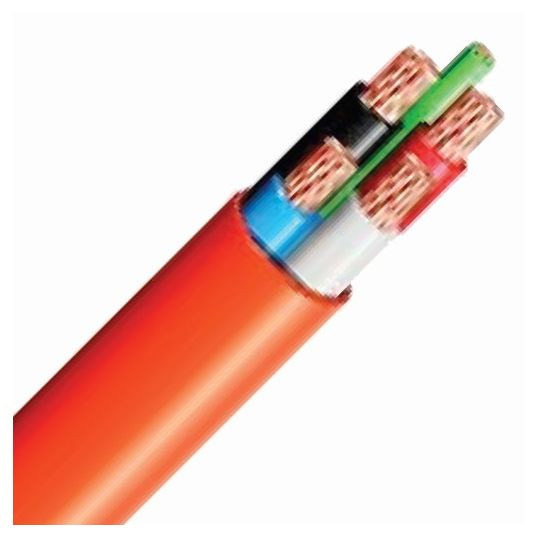

185mm Orange Circular Cable Unarmoured XLPE/PVC 1000mtr
Loading...
Description
Circular Power Cable, Unarmoured, 4 Core & Earth, 185mm, Plain Annealed copper, 0.6/1 kV, 37/2.52mm Strands, 17.6mm Nominal Diameter, 70mm Earth Conductor, 58.6mm Overall Diameter, 350mm Bend Radius, 1.6mm Insulation Thickness, Conductor Resistance: DC - 0.0991 Ohm/km, X-90 XLPE Insulation, 5V-90 PVC Sheath, Red White Blue Black Green/Yellow Cores, Orange Sheath, -15 to 90 deg C, AS/NZS 5000.1
Key Specifications
| Barcode (EAN-13) |
9310835915129
|
|---|---|
| SKU |
CBL185/4CEOCXLPE/PVC
|
| Brand |
Generic
|
| Product Type |
Circular Cable Unarmoured
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1000 |
|---|---|
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | 20199760 |
| Bend Radius | 350 mm |
| Conductor Resistance | DC: 0.0991 Ohm/km |
| Conductor Size | 185 mm |
| Conductor Type | Annealed Copper |
| Core Colours | Black/Blue/Red/White/Green/Yellow |
| Insulation Thickness | 1.6 mm |
| Insulation Material | XLPE |
| Earth Conductor Size | 70 mm |
| Nominal Diameter | 17.6 mm |
| Number of Cores | 4 Core + Earth |
| Overall Diameter | 58.6 mm |
| Sheath Colour | Orange |
| Sheath Material | PVC |
| Stranding | 37/2.52 mm |
| Standards | AS/NZS 5000.1 |
| Temperature | -15 to 90 deg C |
| Voltage | 0.6-1 kV |
