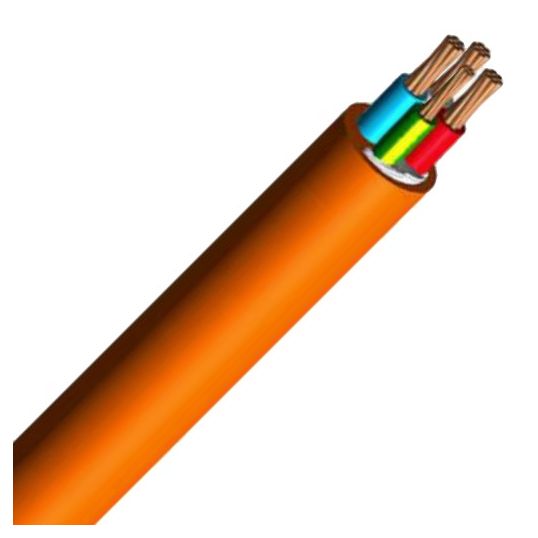

1.5mm Orange Circular Cable Unarmoured PVC/PVC 100mtr

$Prysmian\Prysmian_Unarmoured_3C-E.jpg$

Description

Circular Power Cable, Unarmoured, 3 Core & Earth, 1.5mm, Plain Annealed Copper, 0.6/1 kV, 7/0.5mm Strands, 1.5mm Nominal Diameter, 1.5mm Earth Conductor, 11.3mm Overall Diameter, 45mm Bend Radius, 0.8mm Insulation Thickness, Conductor Resistance: DC - 13.6 Ohm/km, V-90 PVC Insulation, 5V-90 PVC Sheath, Red White Blue Green/Yellow Cores, Orange Sheath, 75 deg C, AS/NZS 5000.1

Key Specifications

Barcode (EAN-13)	9310835039924
SKU	CBL1.5/3CEOC1KV
Brand	Generic
Product Type	Circular Cable Unarmoured

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	100
UNSPSC Class	26121600
UOM	MTR
Vendor Product	20199629
Conductor Resistance	DC: 13.6 Ohm/km
Bend Radius	45 mm
Conductor Size	1.5 mm
Core Colours	Red/Blue/White/Green/Yellow
Conductor Type	Annealed Copper
Earth Conductor Size	1.5 mm
Insulation Material	PVC
Insulation Thickness	0.8 mm
Nominal Diameter	1.5 mm
Number of Cores	3 Core + Earth
Overall Diameter	11.3 mm
Sheath Colour	Orange
Sheath Material	PVC
Standards	AS/NZS 5000.1
Stranding	7/0.5 mm
Temperature	75 deg C
Voltage	0.6-1 kV
