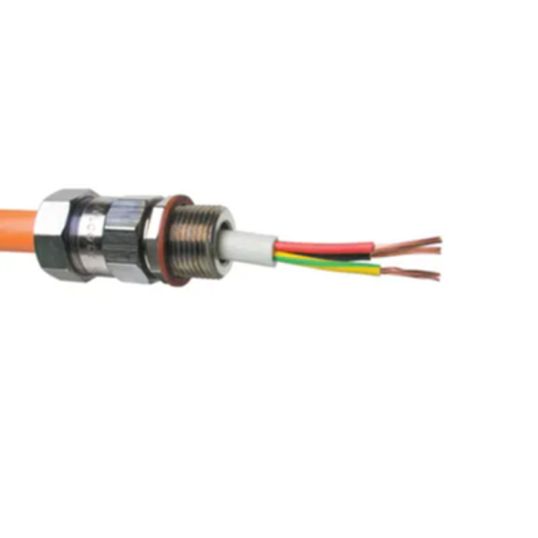

ABB General Purpose Metal Armoured Cable Gland 10.4-12mm M20x1.5 IP68 Steel
Loading...
Description
Cable Gland Metal Armoured, M20, 14 mm Thread Length, 1.5 mm, 10.4 mm Min. Sheath OD, 12 mm Max. Sheath OD, 8 mm Max. Bedding OD, 0.5 mm Min. Armour Wire, 0.9 mm Max. Armour Wire, For Use With Steel Wired Armoured Cables, 25.3 mm Width Across Corners, 40 mm Protrusion Length, IP68, Brass Body, Nickel Plated
Key Specifications
| Barcode (EAN-13) |
9318674369998
|
|---|---|
| SKU |
CAAWGN202
|
| Brand |
ABB
|
| Product Type |
Cable Glands Metal
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39121400 |
| UOM | EA |
| Vendor Product | WGN202 |
| Body Material | Brass |
| Finish | Nickel Plated |
| For Use With | Steel Wired Armoured Cables |
| IP Rating | IP68 |
| Max. Armour Wire | 0.9 mm |
| Max. Bedding OD | 8 mm |
| Min. Armour Wire | 0.5 mm |
| Max. Sheath OD | 12 mm |
| Min. Sheath OD | 10.4 mm |
| Protrusion Length | 40 mm |
| Thread Length | 14 mm |
| Thread Pitch | 1.5 mm |
| Thread Size | M20 |
| Width Across Corners | 25.3 mm |
