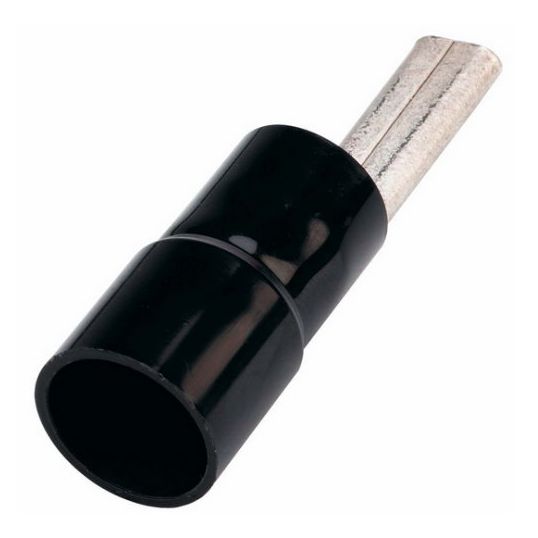

Cabac Pin Connector Insulated Double Grip Large 25mm Black

$Cabac\Cabac_PC_10_16_35_25.jpg$

Description

Pin Connector Insulated Single Grip Large, 25 mm, K28, Nylon Insulation, Black Insulation, 11.1 mm Barrel Inside Diameter, 20.3 mm Pin Length, 45 mm Overall Length, 6.8 mm Thickness

Key Specifications

Barcode (EAN-13)	9318674524892
SKU	CAAPC25
Brand	Cabac
Range Name	Pre-Insulated Terminals

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Insulated pin connectors for larger conductors than the conventional range of yellow terminals Insulation is made from black nylon Featuring funnel entry for ease of insertion Accommodates fine stranded wire
Standard Pack Size	10
UNSPSC Class	39121400
UOM	EA
Vendor Product	PC25
Barrel Inside Diameter	11.1 mm
Crimping Die	K28
Conductor Size	25mm
Insulation Colour	Black
Insulation Material	Nylon
Pin Length	20.3 mm
Overall Length	45 mm
Thickness	6.8 mm
