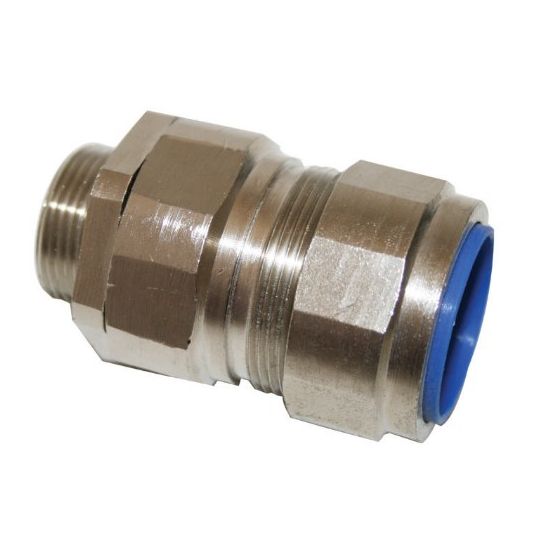

Cabac Metal Cable Gland Armoured General Purpose 58-65.9mm M63 IP66

Description

Metal Cable Gland, Armoured, General Purpose, M63, 15 mm Thread Length, 58 mm Min. Sheath OD, 65.9 mm Max. Sheath OD, 55.9 mm Max. Bedding OD, 2.5 mm Min. Armour Wire, 2.5 mm Max. Armour Wire, 83.2 mm Width Across Corners, IP66, Neoprene Rubber Seal, Brass Body, Nickel Plated Finish

Key Specifications

Barcode (EAN-13)	9318674560746
SKU	CAACW63
Brand	Cabac
Range Name	Type CW
Product Type	Cable Glands Metal

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Nickel plated brass cable glands for steel wire armoured cables with unique wedge seal for quick and easy installation Weatherproof IP66 rated with seal to cable outer jacket Large cable range per gland, thus reducing inventory
Standard Pack Size	1
UNSPSC Class	39121400
UOM	EA
Vendor Product	CW63
Finish	Nickel Plated
Body Material	Brass
IP Rating	IP66
Max. Armour Wire	2.5 mm
Max. Bedding OD	55.9 mm
Max. Sheath OD	65.9 mm
Min. Armour Wire	2.5 mm
Min. Sheath OD	58 mm
Seal Material	Neoprene Rubber
Thread Length	15 mm
Thread Size	M63
Width Across Corners	83.2 mm
