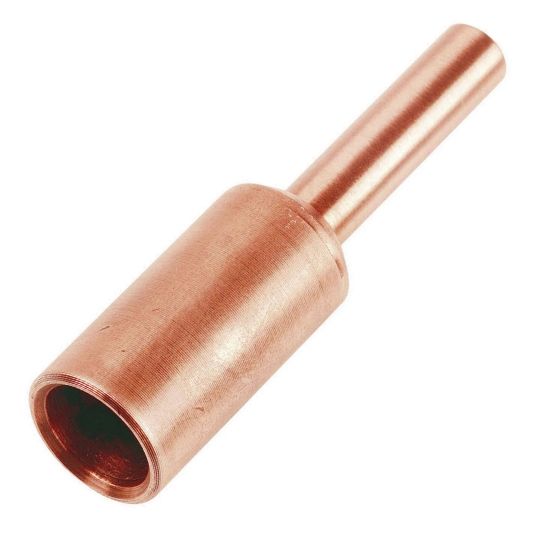

Cabac Crimp Lug Stalk Type B Copper 300mm M20 Stud 50mm L Stalk 107mm OAL

Description

Crimp Lug, Stalk Type B Copper, 300 mm Conductor, 23.5mm Inside Diameter, M20 Stalk, 50mm Stalk Length, 107 mm Length, 42mm Barrel, 200 MPa, Ductile Rating: 40%, Resistivity: 1.738 µOhm cm, Conductivity: 99.7% IACS, Annealed Copper Body, Annealed Copper Conductor, -55 to 155 deg C, A/F Hex Die: 26 mm, Crimping Die: HT130-C-300, 3 Crimps

Key Specifications

Barcode (EAN-13)	9318674517078
SKU	CAACS300/20
Brand	Cabac
Range Name	Stalk Lugs
Product Type	Crimp Lug Stalk Type

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Stalk lugs are generally used to attach cable terminations to a copper overhead conductor Suitable for electrical equipment with clamp terminals Crimped with CABAC and MSS Power standard tooling and copper dies
Standard Pack Size	1
UNSPSC Class	39121400
UOM	EA
Vendor Product	CS300/20
A-F Hex Die	26 mm
Barrel Length	42 mm
Body Material	Annealed Copper
Conductive Material	Annealed Copper
Conductor Size	300 mm
Conductivity	99.7% IACS
Crimping Die	HT130-C-300
Ductile Rating	40%
Inside Diameter	23.5 mm
Number of Crimps	3
Overall Length	107 mm
Resistivity	1.738 µOhm/cm
Stalk Diameter	M20 Stalk
Stalk Length	50 mm
Temperature	-55 to 155 deg C
Tensile Strength	200 MPa
