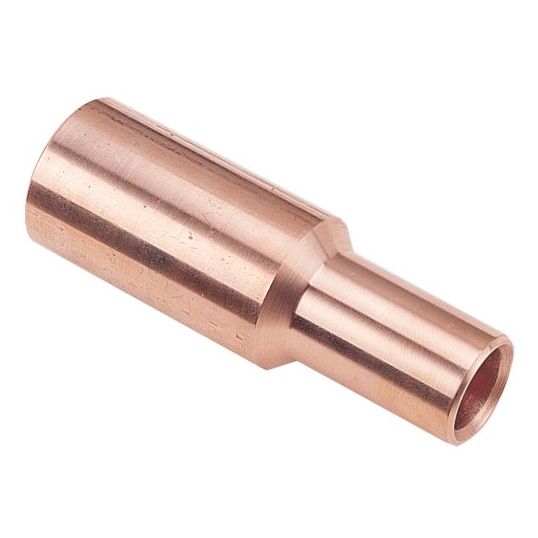

Cabac Crimp Link Reducing Copper 25mm 16mm 50mm OAL

Description

The CABAC copper reducing link range are a barrier type, so they can be used in any situation where an impermeable barrier to oils or water is required.

Key Specifications

Barcode (EAN-13)	9318674513933
SKU	CAACASR25-16
Brand	Cabac
Product Type	Links Reducing Type

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Suitable for circular and sector stranded copper conductors Application: reducing joints, fly leads, tails, etc Impermeable barrier for oils and water Crimped with CABAC and MSS Power standard tooling and copper dies Crimp with standard Australian/NZ hex dies Note: Do not crimp close to the centre barrier or the links may shear
Standard Pack Size	1
UNSPSC Class	39121400
UOM	EA
Vendor Product	CASR25/16
Body Material	Copper
Ductile Rating	40%
Conductive Material	Copper
Conductivity	99.7% IACS
From A-F Hex Die	7.7 mm
From Conductor Size	25 mm
From Crimping Die	HT130-C-25
From Inside Diameter	7.1 mm
From Number of Crimps	1
Overall Length	50 mm
Resistivity	1.738 micro-Ohm/cm
Temperature	-55 to 155 deg C
Tensile Strength	200 MPa
To A-F Hex Die	6.3 mm
To Conductor Size	16 mm
To Crimping Die	HT130-C-16
To Inside Diameter	5.5 mm
To Number of Crimps	1
