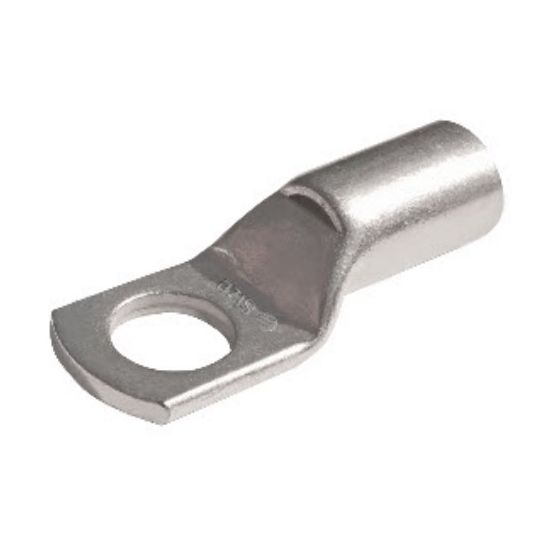

Cabac Crimp Lug Standard Copper 50mm M16 Stud

chevron-left
loader
Loading...

Description

chevron-down
CABAC copper crimp lugs are made from 99.9% + cu high conductivity annealed copper which gives the best electrical properties possible. They are capable of withstanding a continuous operating temperature of 155 deg C, which is well above the temperature properties of most lugs. It is our recommendation that CABAC copper crimp lugs should be crimped with standard Australian tooling.

Key Specifications

chevron-down
Barcode (EAN-13)
9318674891239
SKU
CAACAL50-16
Brand
Cabac
Product Type
Fret Lugs

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Made from high conductivity annealed copper
  • Crimped with CABAC and MSS Power standard tooling and copper dies
  • Complies with AS4325.1
Standard Pack Size 1
UNSPSC Class 39121400
UOM EA
Vendor Product CAL50-16
Barrel Type Standard
Body Material Copper
Conductive Material Copper
Conductor Size 50 mm
Finish Tin Electroplated
Number of Holes 1 Hole
Stud Size 16 mm
Temperature -55 to 155 deg C
