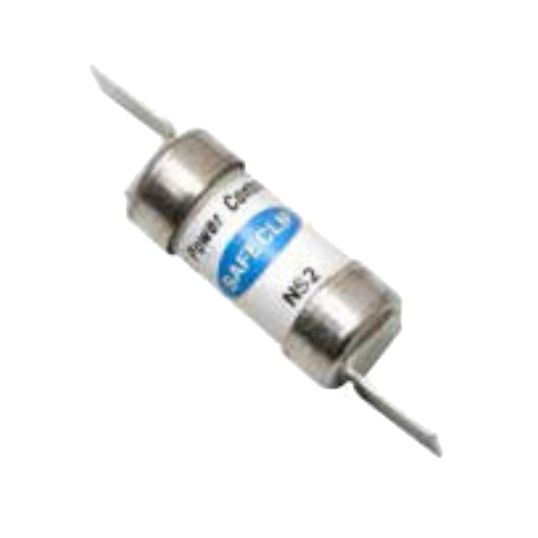

Bussmann Fuse Link HRC Clip In Offset 32 Amp 415 Volt AC 80 kA Class gG BS88 Type A1
Loading...
Description
Fuse Link HRC Clip In Offset, 415 Volt AC, 32 Amp, Class gG, Interrupt Capacity: 80 kA, 58.5mm Fixing Centres, Clip In Offset Tag, 14mm Diameter x 60mm Length, BS88 Type A1
Key Specifications
| SKU |
BUSNS32
|
|---|---|
| Brand |
Bussmann
|
| Product Type |
Fuse Links HRC Clip In
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Features |
|
|---|---|
| Standard Pack Size | 1 |
| UNSPSC Class | 39121600 |
| UOM | EA |
| Vendor Product | NS32 |
| Fixing Centres | 58.5 mm |
| Dimensions | 14 mm Diameter x 60 mm Length |
| Current | 32 Amp |
| Interrupt Capacity | 80 kA |
| Standard Reference | BS88 Type A1 |
| Tag Type | Clip In Offset |
| Utilisation Category | Class gG |
| Voltage | 415 Volt AC |
