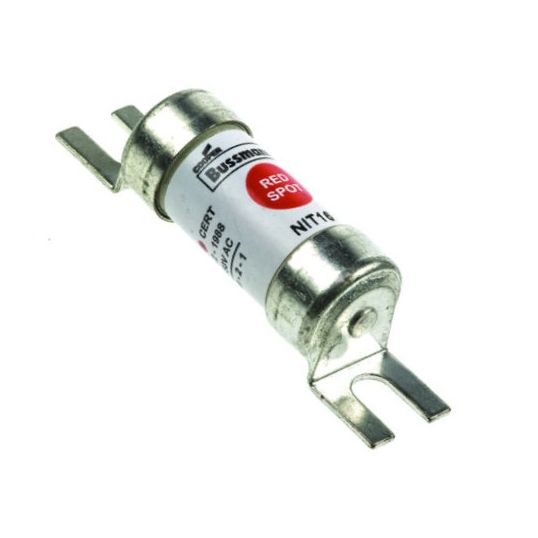

Bussmann Fuse Link HRC Bolt In Offset 6 Amp 550VAC 80 kA Class gG BS88 Type A1
Loading...
Description
Fuse Link HRC Bolt In Offset, 550 VAC, 6 Amp, Class gG, Interrupt Capacity: 80 kA, 44mm Fixing Centres, Bolt In Offset Tag, 14.1mm Diameter x 55.6mm Length, BS88 Type A1
Key Specifications
| SKU |
BUSNIT6
|
|---|---|
| Brand |
Bussmann
|
| Product Type |
Fuse Links HRC Bolt In
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Features |
|
|---|---|
| Standard Pack Size | 1 |
| UNSPSC Class | 39121600 |
| UOM | EA |
| Vendor Product | NIT6 |
| Fixing Centres | 44 mm |
| Dimensions | 14.1 mm Diameter x 55.6 mm Length |
| Current | 6 Amp |
| Interrupt Capacity | 80 kA |
| Standard Reference | BS88 Type A1 |
| Tag Type | Bolt In Offset |
| Utilisation Category | Class gG |
| Voltage | 550 Volt AC |
