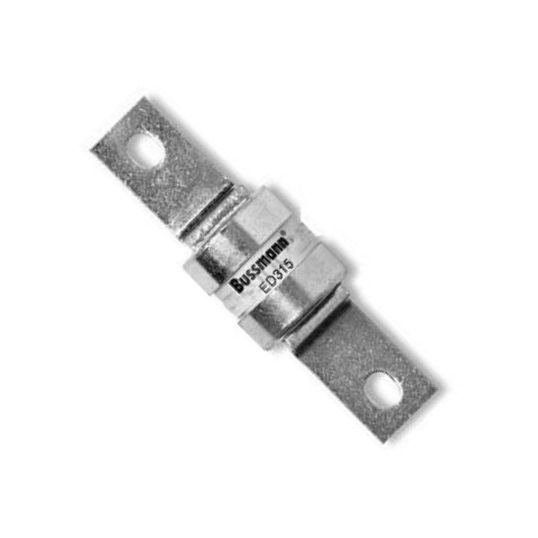

Bussmann Fuse Link HRC Bolt In Centre 250 Amp 415VAC 80 kA Class gG BS88 Type B4
Loading...
Description
Fuse Link HRC Bolt In Centre, 415 VAC, 250 Amp, Class gG, Interrupt Capacity: 80 kA, 111mm Fixing Centres, Bolt In Centre Tag, 31mm Diameter x 136mm Length, BS88 Type B4
Key Specifications
| SKU |
BUSED250
|
|---|---|
| Brand |
Bussmann
|
| Product Type |
Fuse Links HRC
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Features |
|
|---|---|
| Standard Pack Size | 1 |
| UNSPSC Class | 39121600 |
| UOM | EA |
| Vendor Product | ED250 |
| Fixing Centres | 111 mm |
| Dimensions | 31 mm Diameter x 136 mm Length |
| Current | 250 Amp |
| Interrupt Capacity | 80 kA |
| Standard Reference | BS88 Type B4 |
| Tag Type | Bolt In Centre |
| Utilisation Category | Class gG |
| Voltage | 415 Volt AC |
Downloads
