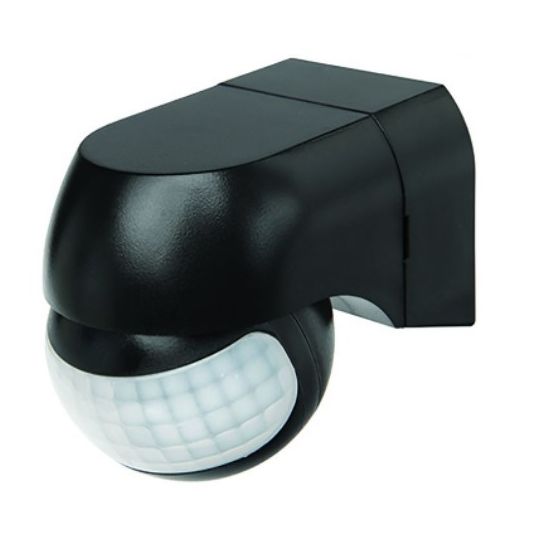

Brilliant Lighting Ezy Scan PIR Security Sensor Wall Mount 180deg IP44 Black

chevron-left
loader
Loading...

Description

chevron-down
PIR Security Sensor, Sensing Method: PIR, Sensing Range: 12 mtr, Sensing Beam: 180 deg, Response Time: 10 sec-15 min, 240 Volt, Wattage: Incandescent: 800 Watt, Fluorescent: 400 Watt, LED: 200 Watt, Lux: 3-2000 lx (adjustable), Mounting Method: Wall, IP44, Black, Dimensions: 80mm Width x 66mm Height, 55mm Projection

Key Specifications

chevron-down
Barcode (EAN-13)
9312641200451
SKU
BRI20044/06
Brand
Brilliant Lighting
Product Type
Sensors

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Passive Infrared technology
  • Multi-segmented lens for better detection
  • Adjustable sensing angle
  • Reliable 3-wire design
  • Adjustable time and lux level
  • Manual override
  • IP44 weather-resistant rated
  • Resets to AUTO mode after 8hrs
  • Lux setting
Standard Pack Size 1
UNSPSC Class 32151900
UOM EA
Vendor Product 20044/06
Colour Black
Dimensions 80 mm Width x 66 mm Height
IP Rating IP44
Lux 3-2000 lx
Mounting Method Wall
Please Note 55mm Projection
Response Time 10 sec - 15 min
Sensing Beam 180 deg
Sensing Range 12 mtr
Sensing Method PIR
Voltage 240 Volt
Wattage Incandescent: 800 Watt / Fluorescent: 400 Watt / LED: 200 Watt
