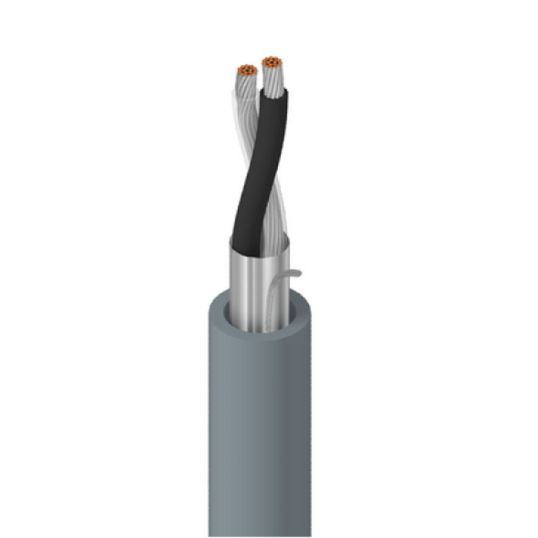

Belden 20 AWG 1 Pair Chrome Data Cable Overall Screened Polyethylene/PVC

$Belden\Belden_8762.jpg$

Description

Data Cable, 20 AWG, Tinned Annealed Copper, 0.3 kV, 3.9 Amp, 1 Pair, 7x28 Strands, Overall Screened Screen, 0.204 in Overall Diameter, 2 in Bend Radius, 0.017 in Insulation Thickness, 0.028 in Sheath Thickness, 38 lbs Pulling Tension, 11.3 Ohm/1000ft Conductor Resistance, 100% Screen Coverage, Aluminium/Polyester Tape Screen, Black/Clear Core, Polyethylene Insulation, PVC Sheath, Chrome Sheath, -20 to 60 deg C, UL 1685 UL Loading IEC 60332-1-2

Key Specifications

Barcode (EAN-13)	9318674021704
SKU	BEL87620601000
Brand	Belden
Product Type	Data Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	305
UNSPSC Class	26121600
UOM	MTR
Vendor Product	8762 0601000
Conductor Size	20 AWG
Bend Radius	2 in
Conductor Type	Tinned Annealed Copper
Core Colours	Black/Clear
Conductor Resistance	11.3 Ohm/1000ft
Current	3.9 Amp
Insulation Material	Polyethylene
Insulation Thickness	0.017 in
Number of Pairs	1 Pair
Overall Diameter	0.204 in
Screen Coverage	100%
Pulling Tension	38 lbs
Screen Material	Aluminium/Polyester Tape
Screen Format	Overall Screened
Sheath Colour	Chrome
Sheath Material	PVC
Standards	UL 1685 UL Loading IEC 60332-1-2
Sheath Thickness	0.028 in
Temperature	-20 to 60 deg C
Stranding	7x28
Voltage	0.3 kV
