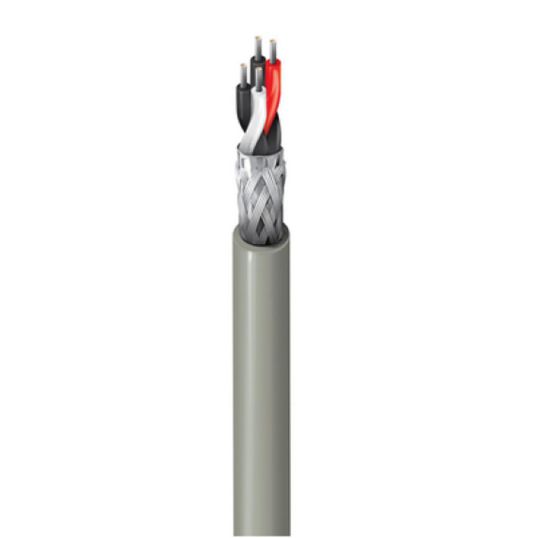

Belden Data Cable 2 Pair Overall Screened 24 AWG 0.3kV FPE/TCBS/AL/PVC Chrome RS232/422

Description

Data Cable, RS232/422, 2 Pair, Overall Screened, 24 AWG, Tinned Copper, 0.3 kV, 1.8 Amp, 7x32 Strands, 0.27 in Overall Diameter, 2.75 in Bend Radius, 0.013 in Insulation Thickness, 0.035 mm Sheath Thickness, 27.5 lbs Pulling Tension, Conductor Resistance: DC - 24 Ohm/1000ft, 65% Screen Coverage, Tinned Copper Braid Screen Aluminium/Polyester Tape, Foam Polyethylene Insulation, PVC Sheath, White & Orange Orange & White Cores, Chrome Sheath, -30 to 80 deg C

Key Specifications

Barcode (EAN-13)	9318674024231
SKU	BEL81020601000
Brand	Belden
Range Name	RS-232/422
Product Type	Data Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	305
UNSPSC Class	26121600
UOM	MTR
Vendor Product	8102 0601000
Conductor Size	6 mm
Bend Radius	2.75 inch
Conductor Type	Tinned Annealed Copper
Core Colours	White/Orange
Conductor Resistance	DC: 24 Ohm/1000 ft
Current	1.8 Amp
Insulation Material	Foam Polyethylene
Insulation Thickness	0.013 inch
Number of Pairs	2 Pair
Overall Diameter	0.27 inch
Please Note	RS232/422
Screen Coverage	65%
Pulling Tension	27.5 lbs
Screen Material	Tinned Copper Braid/Aluminium/Polyester Tape
Screen Format	Overall Screened
Sheath Colour	Chrome
Sheath Material	PVC
Sheath Thickness	0.035 mm
Temperature	-30 to 80 deg C
Stranding	7x32
Voltage	0.3 kV
