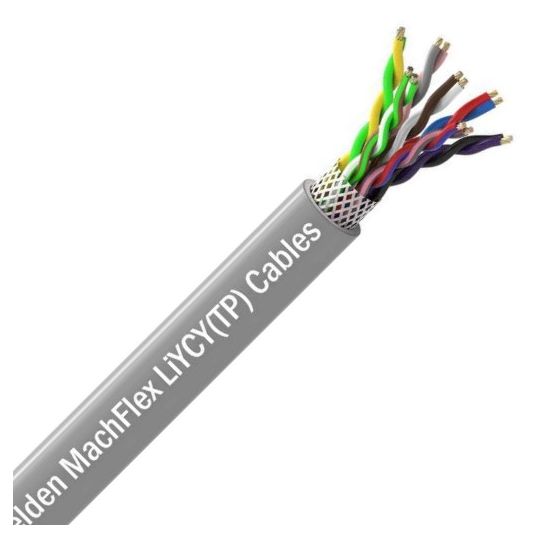

Belden MachFlex LiYCY(TP) Instrumentation Cable Unarmoured 4 Pair Overall Screened 0.5mm 350/500V PVC/TCBS/PVC Grey

Description

Instrumentation Cable, Unarmoured, 4 Pair, Overall Screened, 0.5 mm, Bare Copper, 350/500 Volt, 9 mm Overall Diameter, Bend Radius: Static - - 54 mm Flexible - 135 mm, Insulation Resistanc: >20 GOhm/cm, Tinned Copper Braid Screen, PVC Insulation, PVC Sheath, Grey RAL 7032 Sheath, Static - -40 to 80 deg C Flexible - -5 to 70 deg C, VDE 0812, DIN 47100, DIN VDE 0295, IEC 60228, BS 6360, DIN EN 50290?2?22, DIN VDE 0207?363?4?1, DIN VDE 0482?332?1?2, DIN EN 60332?1?2, IEC 60332?1?2, RoHS, REACH & CE Directives

Key Specifications

SKU	BEL4P0.5YCYF2V500M
Brand	Belden
Range Name	Machflex
Product Type	Instrumentation Cable Unarmoured

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	500
UNSPSC Class	26121600
UOM	MTR
Vendor Product	4P0.5YCY F2V500M
Bend Radius	Static 54 mm/Flexible 135 mm
Conductor Size	0.5 mm
Conductor Type	Bare Copper
Insulation Material	PVC
Number of Pairs	4 Pair
Insulation Resistance	>20 GOhm/cm
Overall Diameter	9 mm
Screen Material	Tinned Copper Braid
Screen Format	Overall Screened
Sheath Colour	Grey
Sheath Material	PVC
Standards	VDE 0812 DIN 47100 DIN VDE 0295 IEC 60228 BS 6360 DIN EN 50290?2?22 DIN VDE 0207?363?4?1 DIN VDE 0482?332?1?2 DIN EN 60332?1?2 IEC 60332?1?2 RoHS REACH & CE Directives
Voltage	350-500 Volt
Temperature	Static: -40 to 80 deg C Flexible: -5 to 70 deg C
