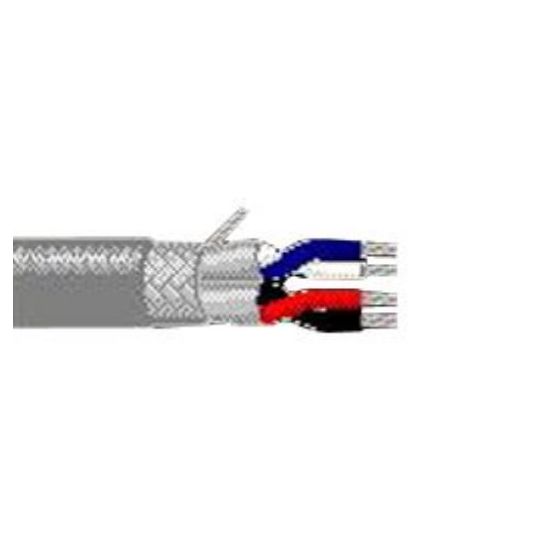

Belden 22/24 AWG 2 Pair Grey Data Cable Overall Screened PVC/Foam Polyethylene/Bi-Laminate

Description

Data Cable, 22/24 AWG, Tinned Annealed Copper, 0.3 kV, 1.7/4 Amp, 2 Pair, 19x34/19x36 Strands, Overall Screened Screen, 0.28 in Overall Diameter, 2.75 in Bend Radius, 0.026 in Insulation Thickness, 0.032 in Sheath Thickness, 65 lbs Pulling Tension, DC: 17.5 Ohm/km / 28 Ohm/km Conductor Resistance, 65% Screen Coverage, Tinned Copper Braid/Aluminium/Polyester Tape Screen, Red/Black/Blue/White Core, PVC/Foam Polyethylene Insulation, Bi-Laminate (Alumimium + Poly) Sheath, Grey Sheath, -20 to 75 deg C, UL 1685 FT4 Loading FT4 IEEE 1202 IEC 60332-1-2

Key Specifications

SKU	BEL3084AR305GY
Brand	Belden
Product Type	Data Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	305
UNSPSC Class	26121600
UOM	MTR
Vendor Product	3084A T5U1000
Bend Radius	2.75 in
Conductor Type	Tinned Annealed Copper
Conductor Resistance	DC: 17.5 Ohm/km / 28 Ohm/km
Current	1.7/4 Amp
Core Colours	Red/Black/Blue/White
Insulation Material	PVC/Foam Polyethylene
Insulation Thickness	0.026 in
Pulling Tension	65 lbs
Number of Pairs	2 Pair
Overall Diameter	0.28 in
Screen Coverage	65%
Screen Format	Overall Screened
Screen Material	Tinned Copper Braid/Aluminium/Polyester Tape
Sheath Colour	Grey
Sheath Material	Bi-Laminate (Alumimium + Poly)
Standards	UL 1685 FT4 Loading FT4 IEEE 1202 IEC 60332-1-2
Stranding	19x34/19x36
Sheath Thickness	0.032 in
Voltage	0.3 kV
Temperature	-20 to 75 deg C
