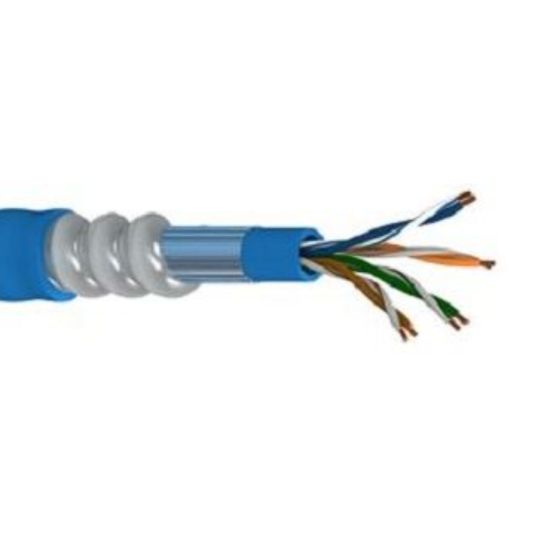

Belden DataTuff Industrial Ethernet Cable CAT5e 4 Pair 24AWG Polyolefin/Aluminum Interlock Armor/PVC Black

$Belden\Belden_121700A0101000.jpg$

Description

Ethernet Cable, 300 Volt, Solid, 24 AWG, 93.8 Ohm/km Conductor Resistance, 1-350 MHz Frequency Bandwidth, Cat 5e, 4 Pair, 170 mm Bend Radius, 18 kg Max. Pulling Force, Bare Copper Conductor, Polyolefin Insulation, PVC Sheath, Black Sheath, 20 to 75 deg C, 1000 ft Length, 14 mm Outside Diameter

Key Specifications

SKU	BEL121700A0101000
Brand	Belden
Range Name	DataTuff
Product Type	Ethernet Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	305
UNSPSC Class	26121600
UOM	MTR
Vendor Product	121700A 0101000
Bend Radius	170 mm
Cable Type	Cat 5e
Conductor Material	Bare Copper
Conductor Resistance	93.8 Ohm/km
Conductor Size	24 AWG
Conductor Type	Solid
Frequency Bandwidth	1-350 MHz
Insulation Material	Polyolefin
Max. Pulling Force	18 kg
Outside Diameter	14 mm
Pair Count	4 Pair
Sheath Colour	Black
Sheath Material	PVC
Temperature	20 to 75 deg C
Voltage	300 Volt
