Bambach 2.5 mm Black Circular Control Cable Unarmoured PVC/PVC 100mtr

Description

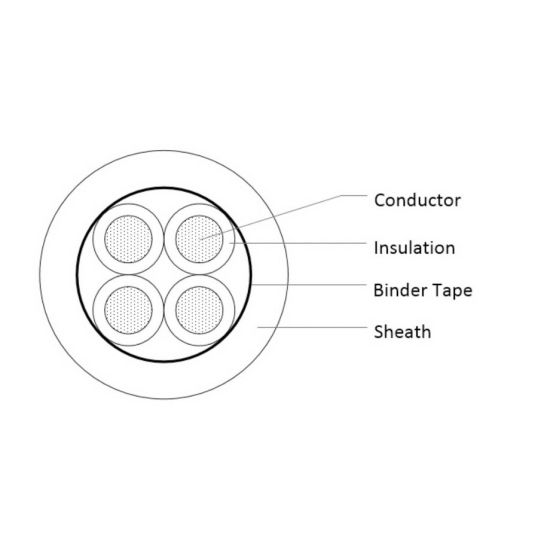

Circular Control Cable, Unarmoured, 4 Core, 2.5 mm, Class 2 Plain Annealed Copper, 0.6/1 kV, 7/0.67 mm Strands, 12.4 mm Overall Diameter, 50 mm Bend Radius, 0.8 mm Insulation Thickness, 1.8 mm Sheath Thickness, Conductor Resistance: DC: 7.98 Ohm/km AC: 9.45 Ohm/km, V-90HT PVC Insulation, 5V-90 PVC Sheath, Black Blue Red White Cores, Black Sheath, -10 to 90 deg C, AS/NZS 1125, AS/NZS 3808, AS/NZS 5000.1, RoHS

Key Specifications

SKU	BAM65470BKS
Brand	Bambach
Product Type	Circular Control Unarmoured

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	100
UNSPSC Class	26121600
UOM	MTR
Vendor Product	65470BKS
Bend Radius	50 mm
Conductor Resistance	DC: 7.98 Ohm/km AC: 9.45 Ohm/km
Conductor Size	2.5 mm
Conductor Type	Class 2 Annealed Copper
Core Colours	Black/Blue/Red/White
Insulation Material	PVC
Insulation Thickness	0.8 mm
Number of Cores	4 Core
Overall Diameter	12.4 mm
Sheath Colour	Black
Standards	AS/NZS 1125 AS/NZS 3808 AS/NZS 5000.1 RoHS
Sheath Thickness	1.8 mm
Sheath Material	PVC
Stranding	7/0.67 mm
Temperature	-10 to 90 deg C
Voltage	0.6-1 kV
