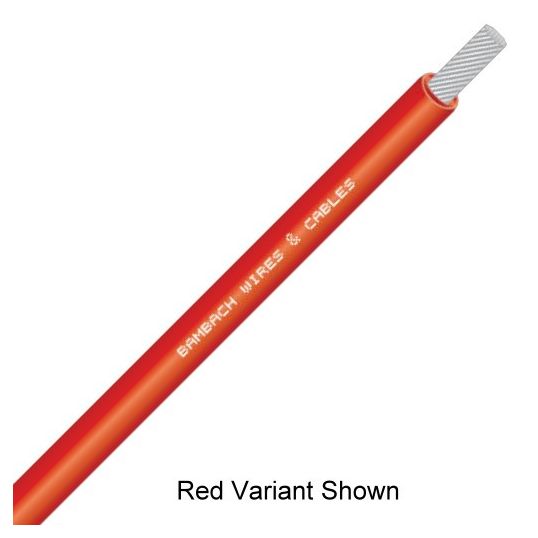

Bambach Flexible Wire Single Insulated 1 Core 10mm 0.6/1kV Tinned Annealed Copper V90HT PVC Brown

Description

Flexible Wire, Single Insulated, 1 Core, 10 mm, Class 5 Oxygen Free Tinned Annealed Copper, 0.6/1 kV, 69 Amp, 140/0.3 mm Strands, 6.3 mm Overall Diameter, V-90HT PVC Insulation, Unsheathed, Brown Insulation, 0 to 90 deg C, AS/NZS 1125, AS/NZS 3808, AS/NZS 5000.1, AS/NZS 1660.5.6, IEC 60228, IEC 60332-1

Key Specifications

SKU	BAM29810BN
Brand	Bambach
Product Type	Flexible Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Tinned copper strands for corrosion protection Oxygen free tinned copper for high conductivity soldered connections Class 5 conductors for extreme flexibility RoHS compliant PVC to European environmental requirements V90-HT insulation for high ambient temperature applications, long term durability and flexibility Extreme Flexibility Easy to Solder Tinned copper conductors for easy adhesion
Standard Pack Size	100
UNSPSC Class	26121600
UOM	MTR
Vendor Product	29810BN
Conductor Size	10 mm
Conductor Type	Class 5 Annealed Copper
Current	69 Amp
Insulation Colour	Brown
Insulation Material	V-90HT PVC
Overall Diameter	6.3 mm
Number of Cores	1 Core
Sheath Material	Unsheathed
Standards	AS/NZS 1125 AS/NZS 3808 AS/NZS 5000.1 AS/NZS 1660.5.6 IEC 60228 IEC 60332-1
Stranding	140/0.3 mm
Temperature	0 to 90 deg C
Voltage	0.6-1 kV
