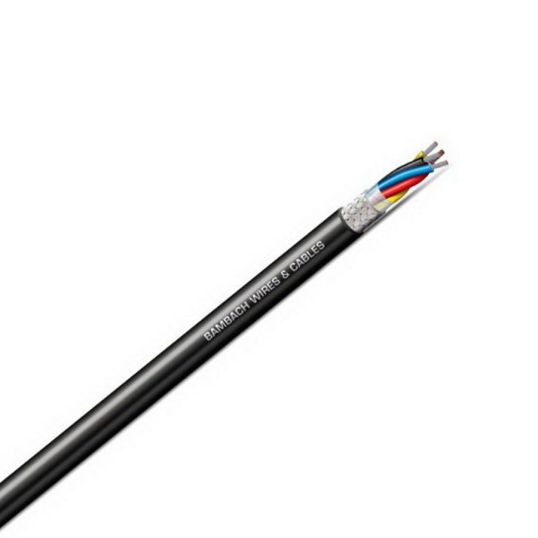

Bambach 0.5mm 4 Core Instrumentation Cable Unarmoured Overall Screened

Description

Instrumentation Cable, Unarmoured, 0.5 mm, Class 5 Annealed Copper, 4 Core, 16/0.2 mm Strands, Overall Screened Screen, 5.8 mm Overall Diameter, 34.8 mm Static Bend Radius, 40.1 Ohm/km Conductor Resistance, 80% Screen Coverage, Oxygen Free Tinned Annealed Copper Screen, Red/Black/Yellow/Blue Core, V-90HT PVC Insulation, 5V-90 PVC Sheath, Black Sheath, -10 to 90 deg C, AS/NZS 1125 AS/NZS 3808 AS/NZS 1660.5.6 IEC 60228 IEC 60332-1, Not suitable for connection to mains

Key Specifications

SKU	BAM22120BK
Brand	Bambach
Product Type	Instrumentation Cable Unarmoured

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Copper braid with minimum coverage of 80% gives excellent EMI shielding V90-HT insulation for high temperature applications Oxygen free tinned copper for high conductivity soldered connections and corrosion protection Fine stranded conductors for high flexibility Highly flexible 5V-90 PVC sheath for easy bending UV resistant black sheath provides extended outdoor life
Standard Pack Size	100
UNSPSC Class	26121600
UOM	MTR
Vendor Product	22120BK
Bend Radius	Static 34.8 mm
Conductor Resistance	40.1 Ohm/km
Conductor Size	0.5 mm
Conductor Type	Class 5 Annealed Copper
Core Colours	Black/Blue/Red/Yellow
Insulation Material	V-90HT PVC
Number of Pairs	4 Core
Overall Diameter	5.8 mm
Please Note	Not suitable for connection to mains
Screen Coverage	80%
Screen Format	Overall Screened
Screen Material	Oxygen Free Tinned Annealed Copper
Sheath Colour	Black
Sheath Material	5V-90 PVC
Standards	AS/NZS 1125 AS/NZS 3808 AS/NZS 1660.5.6 IEC 60228 IEC 60332-1
Stranding	16/0.2 mm
Temperature	-10 to 90 deg C
