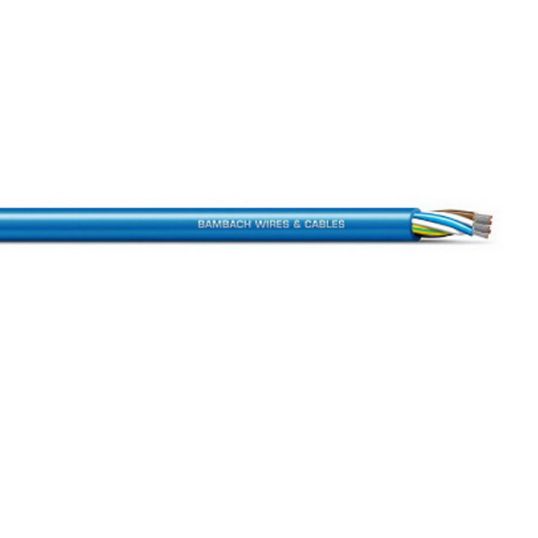

Bambach Submersible Flexible: Cable Rubber 3Core+Earth+4 Pilots 6+1mm 0.6/1kV Annealed Copper TPE-75/GP-75-TPE Blue

Description

Flexible: Cable, Submersible, Rubber, 3 Core + Earth + 4 Pilots, 6 mm + 1 mm Pilots, Class 5 Oxygen Free Tinned Annealed Copper, 0.6/1 kV, 36 Amp, 84/0.3 mm + 32/0.2 mm Strands, 18.5 mm Overall Diameter, 74 mm Bend Radius, 85% Screen Coverage, TPE-75 Vulcanizate Insulation, GP-75-TPE Vulcanizate Sheath, Brown Blue Black White Green/Yellow Cores, Blue Sheath, -30 to 75 deg C, AS/NZS 1125, AS/NZS 3808, AS/NZS 5000.1, IEC 60228

Key Specifications

SKU	BAM14992BE
Brand	Bambach
Product Type	Submersible Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Fine conductor stranding for high flexing RoHS compliant Oxygen free tinned copper for high conductivity soldered connections and corrosion protection Tinned copper braid with 85% minimum coverage provides excellent EMI protection TPV insulation and sheath provides excellent ozone, water, chemical and weathering resistance Submersible - Suitable for permanent deep water installations Extremely Flexibile - Flexible cable using class 5 conductors Easy to Install - Flexible insulation and sheath for use in confined applications Suitable For Outdoors - UV resistant sheath extends life in exposed environments
Standard Pack Size	100
UNSPSC Class	26121600
UOM	MTR
Vendor Product	14992BES
Bend Radius	74 mm
Conductor Size	6 mm
Conductor Type	Class 5 Annealed Copper
Core Colours	Black/Blue/Brown/White/Green/Yellow
Current	36 Amp
Insulation Material	TPE-75 Vulcanizate
Number of Cores	3 Core + Earth + 4 Pilots
Overall Diameter	18.5 mm
Screen Coverage	85%
Sheath Colour	Blue
Sheath Material	GP-75-TPE Vulcanizate
Standards	AS/NZS 1125 AS/NZS 3808 AS/NZS 5000.1 IEC 60228
Stranding	84/0.3 mm + 32/0.2 mm
Temperature	-30 to 75 deg C
Voltage	0.6-1 kV
