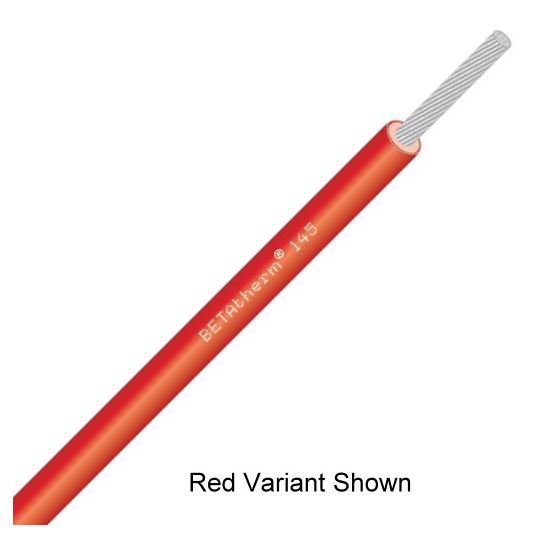

Bambach BETAtherm 145 High Temperature Flexible Wire Single Insulated 1 Core 1mm 0.6/1kV XLPO Orange

Description

Flexible Wire, Single Insulated, High Temperature, 1 Core, 1 mm, Class 5 Tinned Annealed Copper, 0.6/1 kV, 25 Amp, 32/0.2 mm Strands, 2.4 mm Overall Diameter, 9.6 mm Bend Radius, LSZH XLPO Insulation, Unsheathed, Orange Insulation, -55 to 145 deg C, IEC 60332-1, IEC 60332-3, IEC 60228, DIN 51900

Key Specifications

SKU	BAM13248AOE
Brand	Bambach
Range Name	Betatherm 145
Product Type	Flexible Cable High Temperature

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Tinned copper strands for corrosion protection 145 deg C halogen free insulation for high ambient temperature applications Tinned copper for high conductivity soldered connection Fine stranded conductors for high flexing RoHS compliant to European standards Electron beam crosslinked polyolefin copolymer for enhanced mechanical strength Low Smoke - Reduced smoke emission in a fire situation Low Toxicity - Reduced toxicity in a fire situation Non-Corrosive - No corrosive gas emission in a fire situation High Temperature Rating - High temperature rating can allow reduced sizes, saving space and weight
Standard Pack Size	100
UNSPSC Class	26121600
UOM	MTR
Vendor Product	13248AOE
Bend Radius	9.6 mm
Conductor Type	Class 5 Tinned Copper
Conductor Size	1 mm
Current	25 Amp
Insulation Colour	Orange
Insulation Material	LSZH XLPO
Number of Cores	1 Core
Overall Diameter	2.4 mm
Sheath Material	Unsheathed
Standards	IEC 60332-1 IEC 60332-3 IEC 60228 DIN 51900
Temperature	-55 to 145 deg C
Stranding	32/0.2 mm
Voltage	0.6-1 kV
