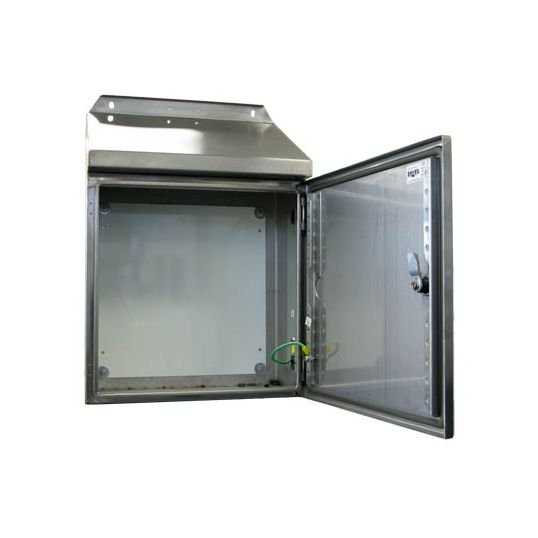

B&R Enclosure Single Door Inclined Roof General Purpose IP66 Stainless Steel Number 4 Finish 400 Wx200 Dx400 Hmm

Description

Enclosure Single Door Inclined Roof, 316 Stainless Steel Housing, 316 Stainless Steel Door, 1 Door, Surface Mounting, Steel Mounting Plate, Neoprene Gasket, IP66, N4 Surface, 400 mm Height, 400 mm Width, 200 mm Depth

Key Specifications

Barcode (EAN-13)	9321228023628
SKU	B&RSR04042/S
Brand	B&R
Range Name	Incline SR
Product Type	Enclosures Metal

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	30 degree sloping roof designed to prevent solids from building up on the surface Easy installation with top and bottom mounting flanges Fully welded construction Corrosion resistant 1.5 mm thick 316 stainless steel Flexible equipment mounting options including door rails and steel mounting pan Specially designed gutter system featuring a 20 mm extended roof local control stations, mini control stations, mini control consoles or motor isolation control stations applications
Standard Pack Size	1
UNSPSC Class	39121300
UOM	EA
Vendor Product	SR04042/S
Depth	200 mm
Door Material	316 Stainless Steel
Finish	N4 Surface
Gasket Material	Neoprene
Height	400 mm
Housing Material	316 Stainless Steel
IP Rating	IP66
Mounting Method	Surface
Mounting Plate Material	Steel
Number of Doors	1
Width	400 mm
