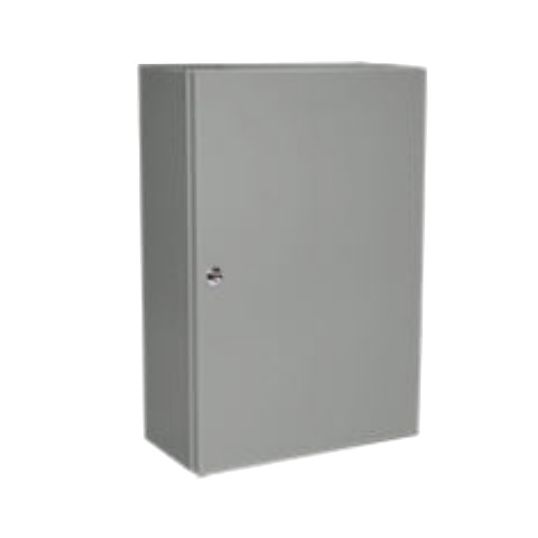

B&R Enclosure Single Door General Purpose RAL 7035 Light Grey IP65 Carbon Steel 400 Wx200 Dx400 H mm

Description

Enclosure Single Door, Steel Housing, Carbon Steel Door, 1 Door, Wall Mounting, Galvanised Steel Mounting Plate, FIP Polyurethane Gasket, IP65, Light Grey, Powder Coated, 400 mm Height, 400 mm Width, 200 mm Depth

Key Specifications

Barcode (EAN-13)	9321228051331
SKU	B&RFR040420
Brand	B&R
Range Name	Forte FR
Product Type	Enclosures Metal

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	110 degree door opening for ease of access utilising concealed door hinge Rear mounting arrangement with wall mounting brackets included Galvanised steel gland plates come standard on enclosures 200 mm and above 2 mm steel mounting pan Foamed in place polyurethane gasket Suitable for a variety of general electrical applications
Standard Pack Size	1
UNSPSC Class	39121300
UOM	EA
Vendor Product	FR040420
Colour	Light Grey
Depth	200 mm
Door Material	Carbon Steel
Finish	Powder Coated
Gasket Material	FIP Polyurethane
Height	400 mm
Housing Material	Steel
IP Rating	IP65
Mounting Method	Wall
Mounting Plate Material	Galvanised Steel
Number of Doors	1
Width	400 mm
