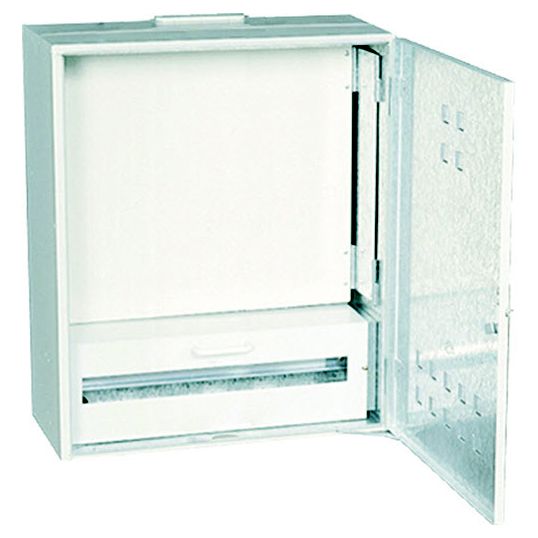

B&R Meter Box Queensland 24 Pole W620mm H770mm D275mm DIN Mount Steel Galvanised

chevron-left
loader
Loading...

Description

chevron-down
Meter Box Queensland, Service Facilities: 4mtr, 24 Poles, 770mm Height, 620mm Width, 275mm Depth, 566mm Panel Height, 600mm Panel Width, IP23, DIN, Steel, RAL 7035, Galvanised

Key Specifications

chevron-down
Barcode (EAN-13)
9321228014374
SKU
B&RBR3M/ECB
Brand
B&R
Product Type
Meter Boxes Domestic

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Durable enclosure suitable for domestic and light metering installations
  • Slide and lift off escutcheons
  • Concealed lift off hinges
  • Underground service location label
  • Double return flat face gutter
  • Manufactured from 1mm galvanised steel to Z275
  • Powder coated light grey RAL7035
Standard Pack Size 1
UNSPSC Class 39121100
UOM EA
Vendor Product BR3M/ECB
Colour RAL7035 Grey
Enclosure Depth 275mm
Enclosure Height 770mm
Enclosure Width 620mm
Finish Galvanised
IP Rating IP23
Material Steel
Mounting Method DIN Rail
Number Of Poles 24 Pole
Panel Height 566mm
Panel Width 600mm
Service Facilities 4mtr
