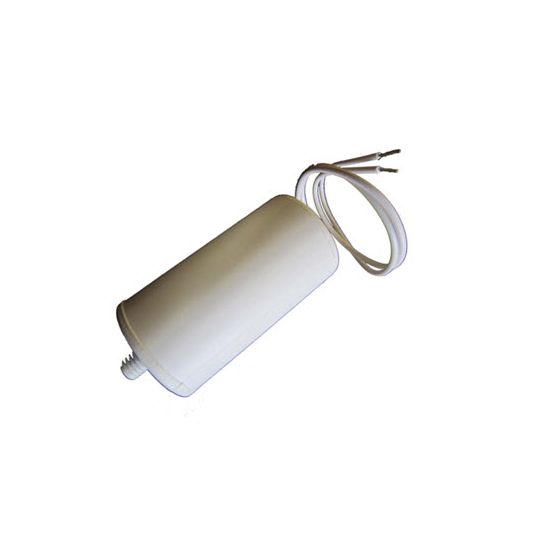

CMP-Atco Lighting Capacitor w/Leads 280V 10uf Aluminium 78mm

chevron-left
loader
Loading...

Description

chevron-down
Lighting Capacitor With Leads, 280 Volt, 50/60 Hz, Aluminium, -40 to 100 deg C, 22 mm Height, 25 mm Width, 78 mm Length

Key Specifications

chevron-down
SKU
ATCCP10.0-280V
Brand
CMP-Atco
Range Name
Type CP
Product Type
Lighting Capacitors

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Protection class B with overpressure protection
  • Self healing polypropylene winding film
  • Test class 40/100/21
  • Conforming with IEC/EN 61048 and IEC/EN 61049
  • Filling material liquid, based on vegetable oil, non-PCB
  • Discharge resistor: yes, <50 Volt within <60s
  • CE certified
  • RoHS complaint
Standard Pack Size 280
UNSPSC Class 39101900
UOM EA
Vendor Product 09100624
Frequency 50/60 Hz
Height 22 mm
Material Aluminium
Temperature -40 to 100 deg C
Voltage 280 Volt
Width 25 mm
