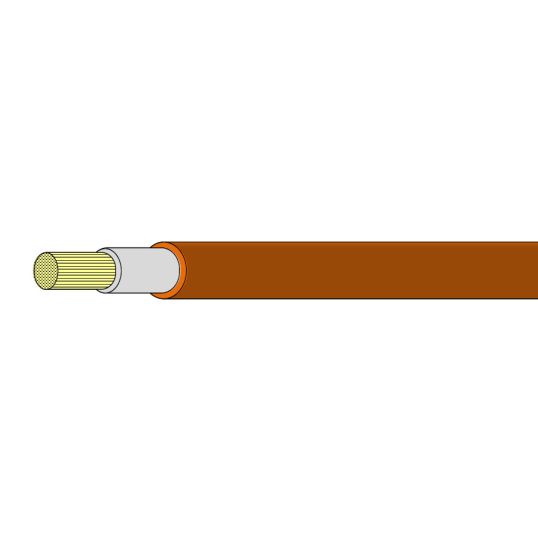

APS 185mm SDI Cable 500mtr

Description

SDI Cable, 185 mm, Class 5 Annealed Copper, 0.6-1 kV, 644 Amp, 1 Core, 2565/0.3 mm Strands, 26.1 mm Overall Diameter, 500 mtr Length, 222 mm During Installation/148 mm After Installation Bend Radius, 1.6 mm Insulation Thickness, 1.6 mm Sheath Thickness, DC: 0.108 mOhm/m Conductor Resistance, X-HF-110 Insulation, Nitrile Modified V90HT PVC Sheath, Orange Sheath, 110 deg C, IEC 60332.1.2 AS/NZS 5000.1 AS/NZS 3808 AS/NZS 5000.1

Key Specifications

SKU	APSLHDN185O
Brand	APS
Product Type	SDI Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	RoHS complaint Excellent flexibility 99.9% OFHC (oxygen free high conductivity) copper which does not show any brittleness Flame retardant, cross linked insulation 110 deg C, low flame propagation
Standard Pack Size	500
UNSPSC Class	26121600
UOM	MTR
Vendor Product	LHDN185O
Bend Radius	222 mm During Installation/148 mm After Installation
Conductor Resistance	DC: 0.108 mOhm/m
Conductor Size	185 mm
Conductor Type	Class 5 Annealed Copper
Current	644 Amp
Insulation Material	X-HF-110
Insulation Thickness	1.6 mm
Number of Cores	1 Core
Overall Diameter	26.1 mm
Sheath Material	Nitrile Modified V90HT PVC
Sheath Colour	Orange
Sheath Thickness	1.6 mm
Standards	IEC 60332.1.2 AS/NZS 5000.1 AS/NZS 3808 AS/NZS 5000.1
Stranding	2565/0.3 mm
Temperature	110 deg C
Voltage	0.6-1 kV
