APEC Circular Power Cable XLPE 1 Core 240mm 0.6/1kV Annealed Copper XLPE/PVC Black
Loading...
Description

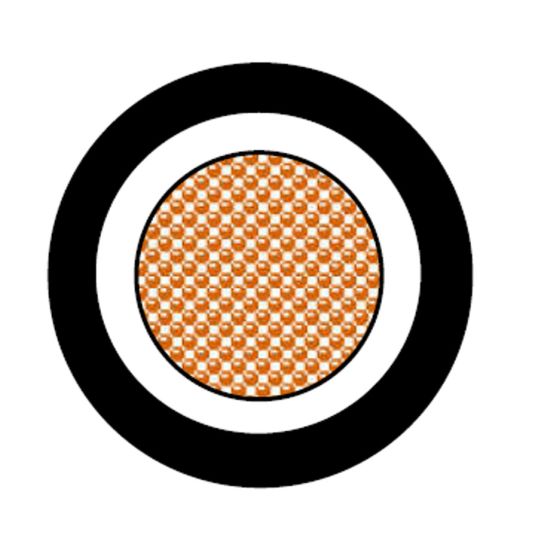

Circular XLPE Cable, 240 mm, Annealed Copper, 0.6-1 kV, 1 Core, 27.6 mm Overall Diameter, 1.7 mm Insulation Thickness, 1.8 mm Sheath Thickness, Natural Core, X-90 XLPE Insulation, 5V-90 PVC Sheath, Black Sheath, 90 deg C, AS/NZS 5000.1
Key Specifications
| Barcode (EAN-13) |
932666300764
|
|---|---|
| SKU |
APEXVM240C01
|
| Brand |
APEC
|
| Product Type |
Cables Circular
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | XV240C01 |
| Conductor Type | Annealed Copper |
| Core Colour | Natural |
| Insulation Material | X-90 XLPE |
| Insulation Thickness | 1.7 mm |
| Overall Diameter | 27.6 mm |
| Sheath Thickness | 1.8 mm |
| Sheath Colour | Black |
| Standards | AS/NZS 5000.1 |
| Sheath Material | 5V-90 PVC |
| Temperature | 90 deg C |
| Voltage | 0.6-1 kV |
| Conductor Size | 240 mm |
| Number of Cores | 1 Core |
