APEC 1.5 mm Black Circular Control Cable Armoured V-90 PVC/Galvanised SWA/5V-90 PVC 1mtr
Loading...
Description

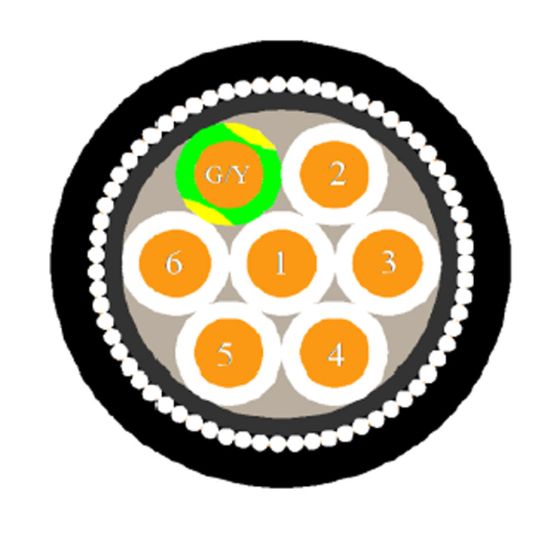

Circular Control Cable, Armoured, 1.5 mm, Annealed Bare copper, 0.6-1 kV, 6 Core + Earth, 7/0.5 mm Strands, 17.5 mm Overall Diameter, 1 mtr Length, 1.8 mm Sheath Thickness, 11.4 mm Bedding Diameter, 13.9 mm Diameter Over Armour, Galvanised Steel Wire Armour, White/Black Numerals Green/Yellow Core, V-90 PVC Insulation, 5V-90 PVC Sheath, Black Sheath, AS/NZS 5000.1
Key Specifications
| Barcode (EAN-13) |
932666301220
|
|---|---|
| SKU |
APEVCS105E06B5K1
|
| Brand |
APEC
|
| Product Type |
Circular Control Armoured
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | VCS105E06B5K1 |
| Armour Material | Galvanised Steel Wire |
| Bedding Diameter | 11.4 mm |
| Conductor Size | 1.5 mm |
| Conductor Type | Annealed Bare copper |
| Diameter Over Armour | 13.9 mm |
| Insulation Material | V-90 PVC |
| Number of Cores | 6 Core + Earth |
| Overall Diameter | 17.5 mm |
| Sheath Colour | Black |
| Sheath Material | 5V-90 PVC |
| Sheath Thickness | 1.8 mm |
| Standards | AS/NZS 5000.1 |
| Stranding | 7/0.5 mm |
| Voltage | 0.6-1 kV |
