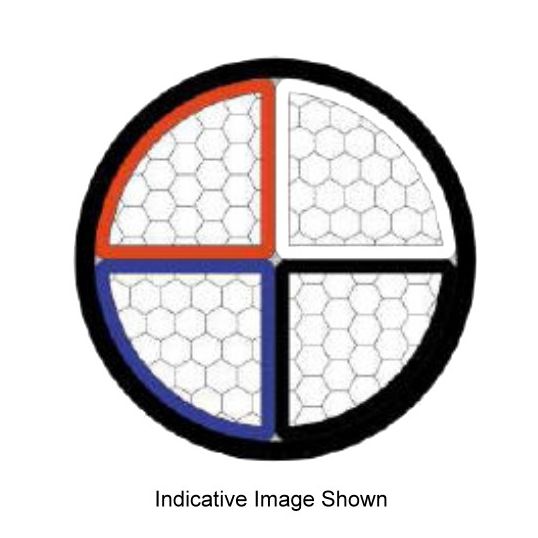

APEC 240mm Black Circular Cable Unarmoured X-90 XLPE/5V-90 PVC 1mtr

Description

Circular Cable Unarmoured, 240mm, Hard Drawn Compacted Aluminium, 0.6-1 kV, 49.6mm Core Diameter, 17.1mm x 24.7mm Nominal Diameter, 56.5mm Overall Diameter, 1 mtr Length, 1.7mm Insulation Thickness, 2.8mm Sheath Thickness, X-90 XLPE Insulation, Red/White/Blue/Black Insulation, 5V-90 PVC Sheath, Black Sheath, 90 deg C, AS/NZS 4026 AS/NZS 5000.1

Key Specifications

Barcode (EAN-13)	932666301287
SKU	APESCT240A04
Brand	APEC
Product Type	Circular Cable Unarmoured

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	26121600
UOM	MTR
Vendor Product	SCT240A04
Conductor Size	240 mm
Conductor Type	Hard Drawn Compacted Aluminium
Core Diameter	49.6 mm
Insulation Colour	Red/White/Blue/Black
Insulation Thickness	1.7 mm
Insulation Material	X-90 XLPE
Nominal Diameter	17.1 mm x 24.7 mm
Overall Diameter	56.5 mm
Sheath Colour	Black
Sheath Material	5V-90 PVC
Sheath Thickness	2.8 mm
Standards	AS/NZS 4026 AS/NZS 5000.1
Temperature	90 deg C
Voltage	0.6-1 kV
