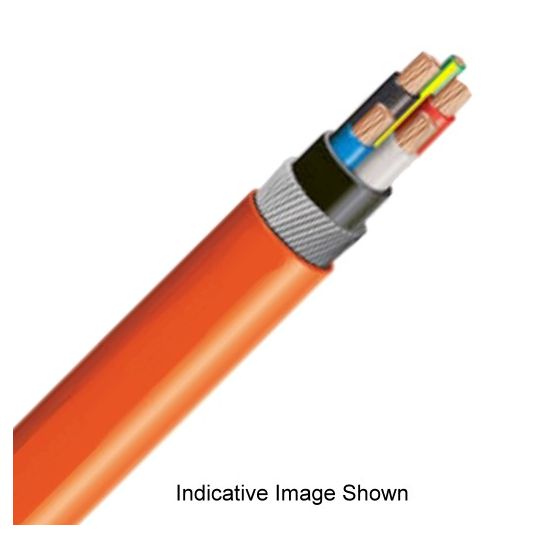

APEC 4 mm Orange Circular Cable Armoured X-90 XLPE/Steel Wire/5V-90 PVC 1mtr
Loading...
Description

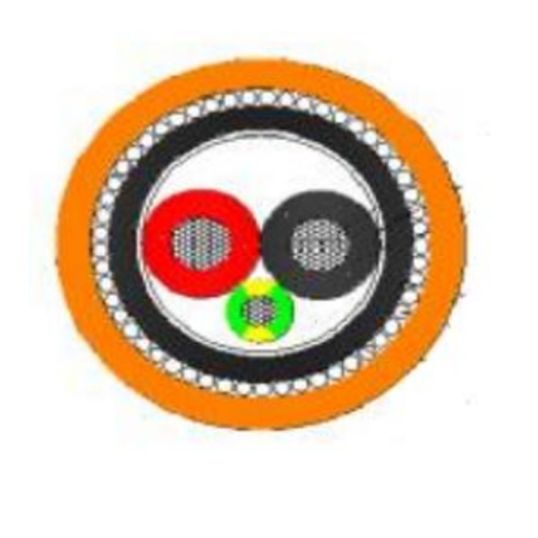

Circular Cable, Armoured, 4 mm, Annealed Copper, 0.6-1 kV, 2 Core + Earth, 19.1 mm Overall Diameter, 15.2 mm Diameter Over Armour, 2.5 mm Earth Conductor, 1 mtr Length, 0.7 mm Insulation Thickness, 1.8 mm Sheath Thickness, Steel Wire Armour, Red/Black/Green/Yellow Core, X-90 XLPE Insulation, 5V-90 PVC Sheath, Orange Sheath, 90 deg C, AS/NZS 5000.1
Key Specifications
| Barcode (EAN-13) |
932666301253
|
|---|---|
| SKU |
APEMXS004E02
|
| Brand |
APEC
|
| Product Type |
Circular Cable Armoured
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | MXS004E02 |
| Armour Material | Steel Wire |
| Conductor Type | Annealed Copper |
| Conductor Size | 4 mm |
| Core Colours | Black/Red/Green/Yellow |
| Diameter Over Armour | 15.2 mm |
| Earth Conductor Size | 2.5 mm |
| Insulation Material | X-90 XLPE |
| Insulation Thickness | 0.7 mm |
| Number of Cores | 2 Core + Earth |
| Overall Diameter | 19.1 mm |
| Sheath Colour | Orange |
| Sheath Material | 5V-90 PVC |
| Sheath Thickness | 1.8 mm |
| Standards | AS/NZS 5000.1 |
| Temperature | 90 deg C |
| Voltage | 0.6-1 kV |
