APEC 25mm Black Circular Cable Unarmoured X-90 XLPE/5V-90 PVC 100mtr
Loading...
Description

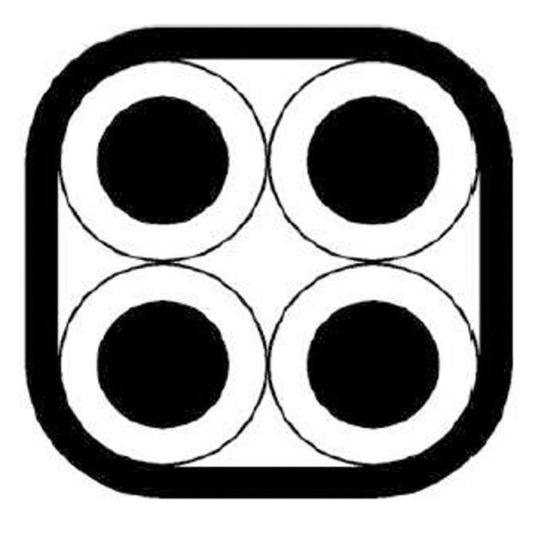

Circular Cable, Unarmoured, 25mm, Annealed Copper, 0.6-1 kV, 4 Core, 27.34mm Overall Diameter, 100 mtr Length, 1.7mm Insulation Thickness, 1.3mm Sheath Thickness, Red/White/Blue/Black Core, X-90 XLPE Insulation, 5V-90 PVC Sheath, Black Sheath, 90 deg C, AS/NZS 4026.1
Key Specifications
| Barcode (EAN-13) |
932666300046
|
|---|---|
| SKU |
APEMX025S04
|
| Brand |
APEC
|
| Product Type |
Circular Cable Unarmoured
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 100 |
|---|---|
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | MX025S04 |
| Conductor Size | 25 mm |
| Conductor Type | Annealed Copper |
| Core Colours | Black/Blue/Red/White |
| Insulation Thickness | 1.7 mm |
| Insulation Material | X-90 XLPE |
| Number of Cores | 4 Core |
| Overall Diameter | 27.34 mm |
| Sheath Colour | Black |
| Sheath Material | 5V-90 PVC |
| Sheath Thickness | 1.3 mm |
| Standards | AS/NZS 4026.1 |
| Temperature | 90 deg C |
| Voltage | 0.6-1 kV |
