APEC 2.5mm Orange Circular Cable Unarmoured PVC/PVC 500mtr

Description

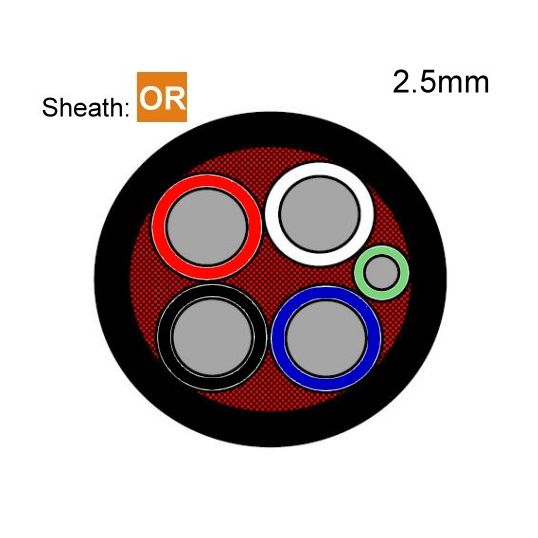

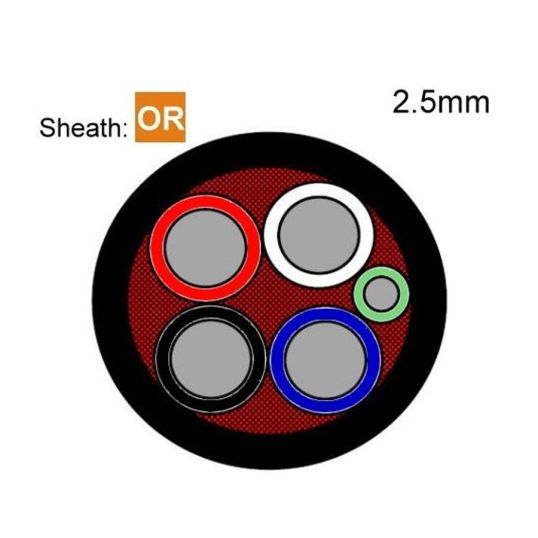

Circular Power Cable, Unarmoured, 4 Core & Earth, 2.5mm, Annealed Copper, 450/750 Volt, 2.5mm Earth Conductor, 12.2mm Overall Diameter, 0.7mm Insulation Thickness, 1.3mm Sheath Thickness, PVC Insulation, PVC Sheath, Red White Blue Black Green/Yellow Cores, Orange Sheath, 90 deg C, AS/NZS 5000.2

Key Specifications

Barcode (EAN-13)	932666300174
SKU	APEMVM205E04-5
Brand	APEC
Product Type	Circular Cable Unarmoured

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	500
UNSPSC Class	26121600
UOM	MTR
Vendor Product	MVM205E04-5
Conductor Size	2.5 mm
Conductor Type	Annealed Copper
Core Colours	Black/Blue/Red/White/Green/Yellow
Insulation Thickness	0.7 mm
Insulation Material	PVC
Earth Conductor Size	2.5 mm
Number of Cores	4 Core + Earth
Overall Diameter	12.2 mm
Sheath Colour	Orange
Sheath Material	PVC
Sheath Thickness	1.3 mm
Standards	AS/NZS 5000.2
Temperature	90 deg C
Voltage	450-750 Volt
