APEC 2.5mm Orange Circular Cable Unarmoured V-90 PVC/5V-90 PVC 500mtr

Description

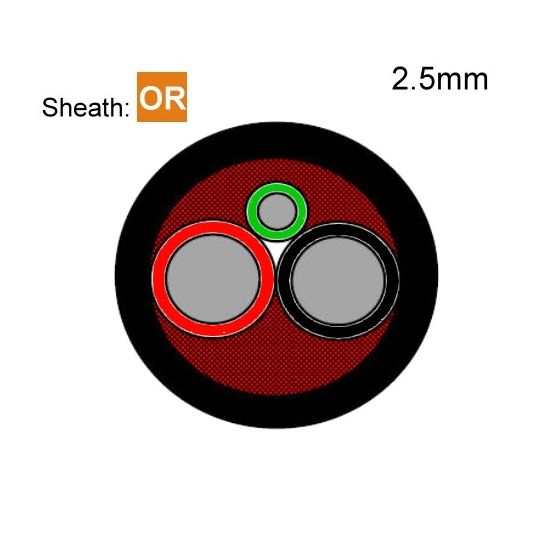

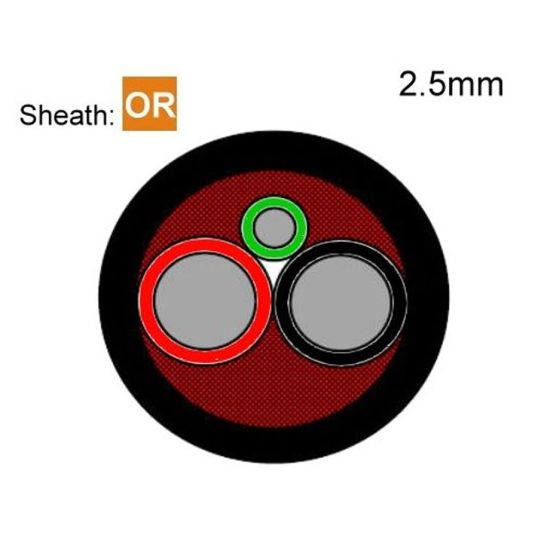

Circular Cable, Unarmoured, 2.5mm, Annealed Copper, 0.6-1 kV, 2 Core + Earth, 11.9mm Overall Diameter, 2.5mm Earth Conductor, 500 mtr Length, 0.8mm Insulation Thickness, 1.8mm Sheath Thickness, Red/Black/Green/Yellow Core, V-90 PVC Insulation, 5V-90 PVC Sheath, Orange Sheath, 90 deg C, AS/NZS 5000.1

Key Specifications

Barcode (EAN-13)	932666300403
SKU	APEMVM205E025K1-5
Brand	APEC
Product Type	Circular Cable Unarmoured

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	500
UNSPSC Class	26121600
UOM	MTR
Vendor Product	MVM205E025K1-5
Conductor Size	2.5 mm
Conductor Type	Annealed Copper
Core Colours	Black/Red/Green/Yellow
Insulation Thickness	0.8 mm
Insulation Material	V-90 PVC
Earth Conductor Size	2.5 mm
Number of Cores	2 Core + Earth
Overall Diameter	11.9 mm
Sheath Colour	Orange
Sheath Material	5V-90 PVC
Sheath Thickness	1.8 mm
Standards	AS/NZS 5000.1
Temperature	90 deg C
Voltage	0.6-1 kV
