APEC 2.5mm Orange Circular Cable Unarmoured V-90 PVC/5V-90 PVC 100mtr

Description

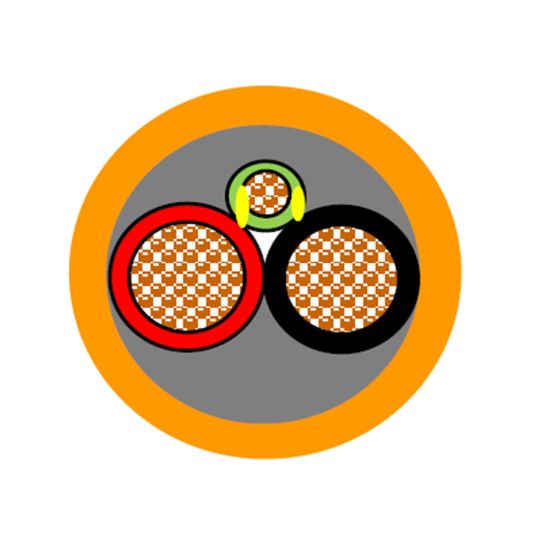

Circular Cable, Unarmoured, 2.5mm, Annealed Copper, 450-750 Volt, 2 Core + Earth, 11.3mm Overall Diameter, 2.5mm Earth Conductor, 100 mtr Length, 0.7mm Insulation Thickness, 1.3mm Sheath Thickness, Red/Black/Green/Yellow Core, V-90 PVC Insulation, 5V-90 PVC Sheath, Orange Sheath, 90 deg C, AS/NZS 5000.2

Key Specifications

Barcode (EAN-13)	932666300469
SKU	APEMVM205E02
Brand	APEC
Product Type	Circular Cable Unarmoured

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	100
UNSPSC Class	26121600
UOM	MTR
Vendor Product	MVM205E02
Conductor Size	2.5 mm
Conductor Type	Annealed Copper
Core Colours	Black/Red/Green/Yellow
Insulation Thickness	0.7 mm
Insulation Material	V-90 PVC
Earth Conductor Size	2.5 mm
Number of Cores	2 Core + Earth
Overall Diameter	11.3 mm
Sheath Colour	Orange
Sheath Material	5V-90 PVC
Sheath Thickness	1.3 mm
Standards	AS/NZS 5000.2
Temperature	90 deg C
Voltage	450-750 Volt
