APEC 1.5mm Orange Circular Cable Unarmoured V-90 PVC/5V-90 PVC 100mtr
Loading...
Description

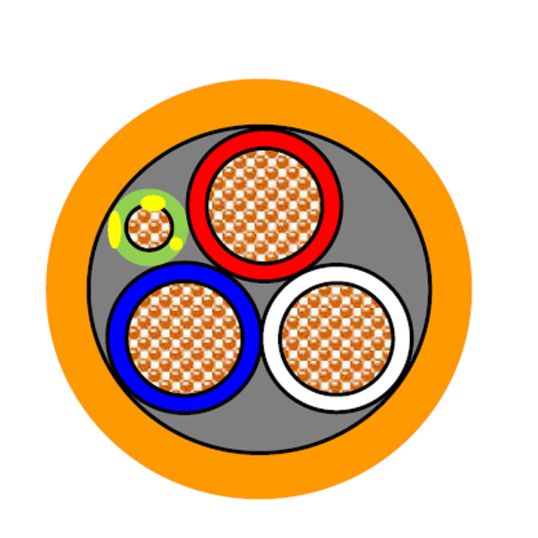

Circular Cable, Unarmoured, 1.5mm, Annealed Copper, 450-750 Volt, 3 Core + Earth, 10.4mm Overall Diameter, 1.5mm Earth Conductor, 100 mtr Length, 0.6mm Insulation Thickness, 1.2mm Sheath Thickness, Red/Blue/White/Green/Yellow Core, V-90 PVC Insulation, 5V-90 PVC Sheath, Orange Sheath, 90 deg C, AS/NZS 5000.2
Key Specifications
| Barcode (EAN-13) |
932666300467
|
|---|---|
| SKU |
APEMVM105E03
|
| Brand |
APEC
|
| Product Type |
Circular Cable Unarmoured
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 100 |
|---|---|
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | MVM105E03 |
| Conductor Size | 1.5 mm |
| Core Colours | Red/Blue/White/Green/Yellow |
| Conductor Type | Annealed Copper |
| Earth Conductor Size | 1.5 mm |
| Insulation Material | V-90 PVC |
| Insulation Thickness | 0.6 mm |
| Number of Cores | 3 Core + Earth |
| Overall Diameter | 10.4 mm |
| Sheath Colour | Orange |
| Sheath Material | 5V-90 PVC |
| Sheath Thickness | 1.2 mm |
| Standards | AS/NZS 5000.2 |
| Temperature | 90 deg C |
| Voltage | 450-750 Volt |
