APEC 1.5mm Orange Circular Cable Unarmoured PVC/PVC 500mtr
Loading...
Description

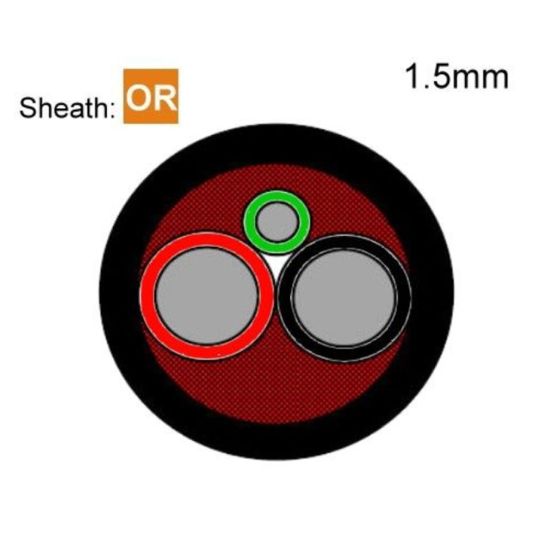

Circular Power Cable, Unarmoured, 2 Core & Earth, 1.5mm, Annealed Copper, 0.6/1 kV, 1.5mm Earth Conductor, 10.4mm Overall Diameter, 0.8mm Insulation Thickness, 1.8mm Sheath Thickness, PVC Insulation, PVC Sheath, Red Black Green/Yellow Cores, Orange Sheath, 90 deg C, AS/NZS 5000.1
Key Specifications
| Barcode (EAN-13) |
932666300396
|
|---|---|
| SKU |
APEMVM105E025K1-5
|
| Brand |
APEC
|
| Product Type |
Circular Cable Unarmoured
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 500 |
|---|---|
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | MVM105E025K1-5 |
| Conductor Size | 1.5 mm |
| Conductor Type | Annealed Copper |
| Core Colours | Black/Red/Green/Yellow |
| Earth Conductor Size | 1.5 mm |
| Insulation Material | PVC |
| Insulation Thickness | 0.8 mm |
| Number of Cores | 2 Core + Earth |
| Overall Diameter | 10.4 mm |
| Sheath Material | PVC |
| Sheath Colour | Orange |
| Standards | AS/NZS 5000.1 |
| Sheath Thickness | 1.8 mm |
| Temperature | 90 deg C |
| Voltage | 0.6-1 kV |
