APEC 1.5mm Orange Circular Cable Unarmoured PVC/PVC 100mtr
Loading...
Description

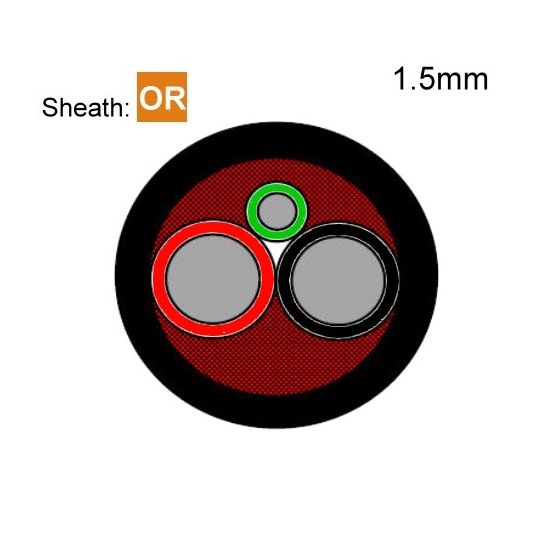

Circular Power Cable, Unarmoured, 2 Core & Earth, 1.5mm, Annealed Copper, 450/750 Volt, 1.5mm Earth Conductor, 8.5mm Overall Diameter, 0.6mm Insulation Thickness, 1.2mm Sheath Thickness, PVC Insulation, PVC Sheath, Red Black Green/Yellow Cores, Orange Sheath, 90 deg C, AS/NZS 5000.2
Key Specifications
| Barcode (EAN-13) |
932666300346
|
|---|---|
| SKU |
APEMVM105E02
|
| Brand |
APEC
|
| Product Type |
Circular Cable Unarmoured
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 100 |
|---|---|
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | MVM105E02-1 |
| Conductor Size | 1.5 mm |
| Conductor Type | Annealed Copper |
| Core Colours | Black/Red/Green/Yellow |
| Insulation Thickness | 0.6 mm |
| Insulation Material | PVC |
| Earth Conductor Size | 1.5 mm |
| Number of Cores | 2 Core + Earth |
| Overall Diameter | 8.5 mm |
| Sheath Colour | Orange |
| Sheath Material | PVC |
| Sheath Thickness | 1.2 mm |
| Standards | AS/NZS 5000.2 |
| Temperature | 90 deg C |
| Voltage | 450-750 Volt |
