APEC 25mm Orange Circular Cable Unarmoured PVC/PVC 100mtr
Loading...
Description

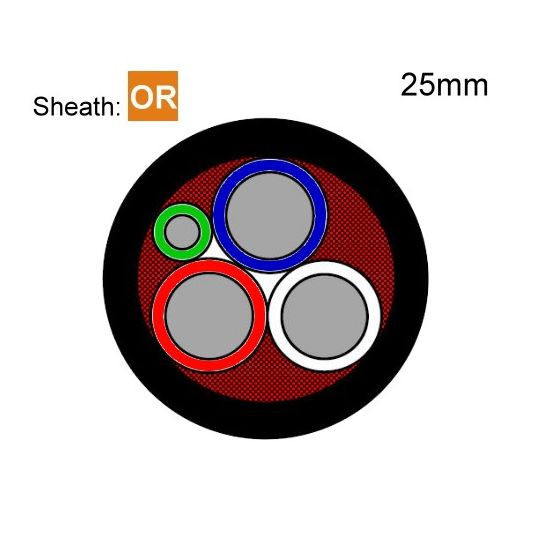

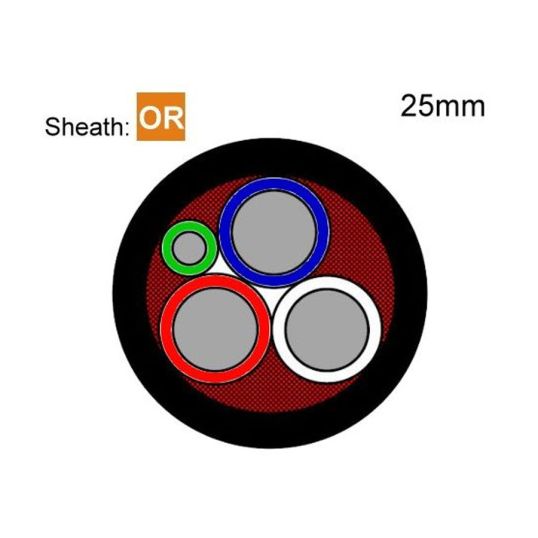

Circular Power Cable, Unarmoured, 3 Core & Earth, 25mm, Annealed Copper, 0.6/1 kV, 6mm Earth Conductor, 23.4mm Overall Diameter, 1.2mm Insulation Thickness, PVC Insulation, PVC Sheath, Red White Blue Green/Yellow Cores, Orange Sheath, 90 deg C, AS/NZS 5000.1
Key Specifications
| Barcode (EAN-13) |
932666300679
|
|---|---|
| SKU |
APEMVM025E03
|
| Brand |
APEC
|
| Product Type |
Circular Cable Unarmoured
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 100 |
|---|---|
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | MVM025E03 |
| Conductor Size | 25 mm |
| Conductor Type | Annealed Copper |
| Core Colours | Red/Blue/White/Green/Yellow |
| Insulation Thickness | 1.2 mm |
| Insulation Material | PVC |
| Earth Conductor Size | 6 mm |
| Number of Cores | 3 Core + Earth |
| Overall Diameter | 23.4 mm |
| Sheath Colour | Orange |
| Sheath Material | PVC |
| Standards | AS/NZS 5000.1 |
| Temperature | 90 deg C |
| Voltage | 0.6-1 kV |
